UBR200 Miniature Water Regulator 1-3-12

shako VR Virtual Exhibition SHAKO CO., LTD. (istaging.com)

Eco Power-Saving Solenoid Valve

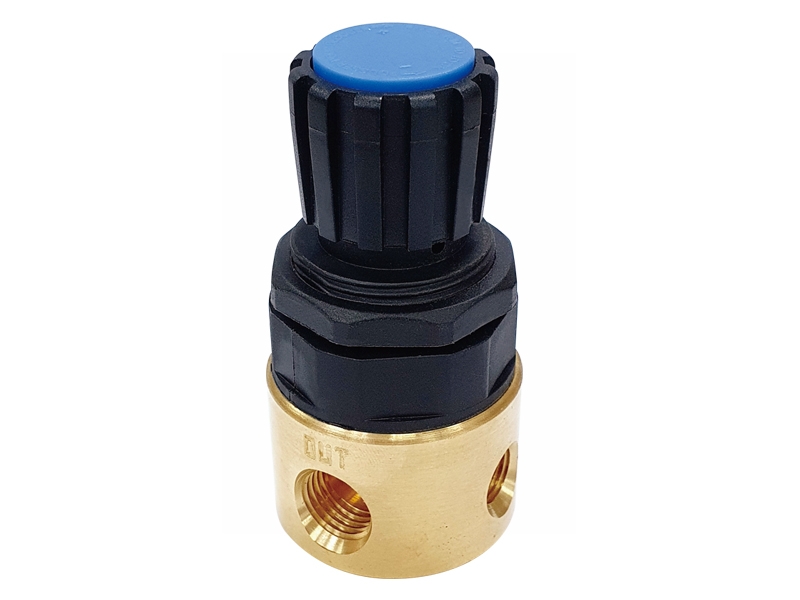

Product Name : UBR200 Miniature Water Regulator

Enlargement

Accurate and easy pressure setting.
Panel mounting is available.

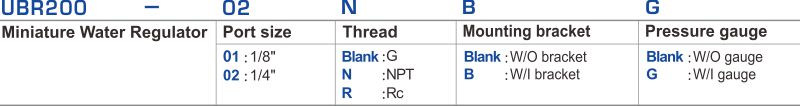

proimages/2_2020_en/1/1_How_to_order/UBR200.jpg

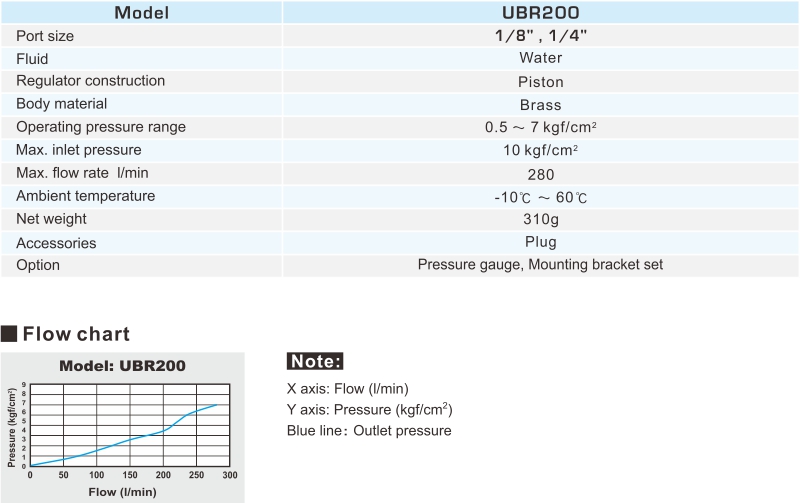

proimages/2_2020_en/1/2_specifications/UBR200.jpg

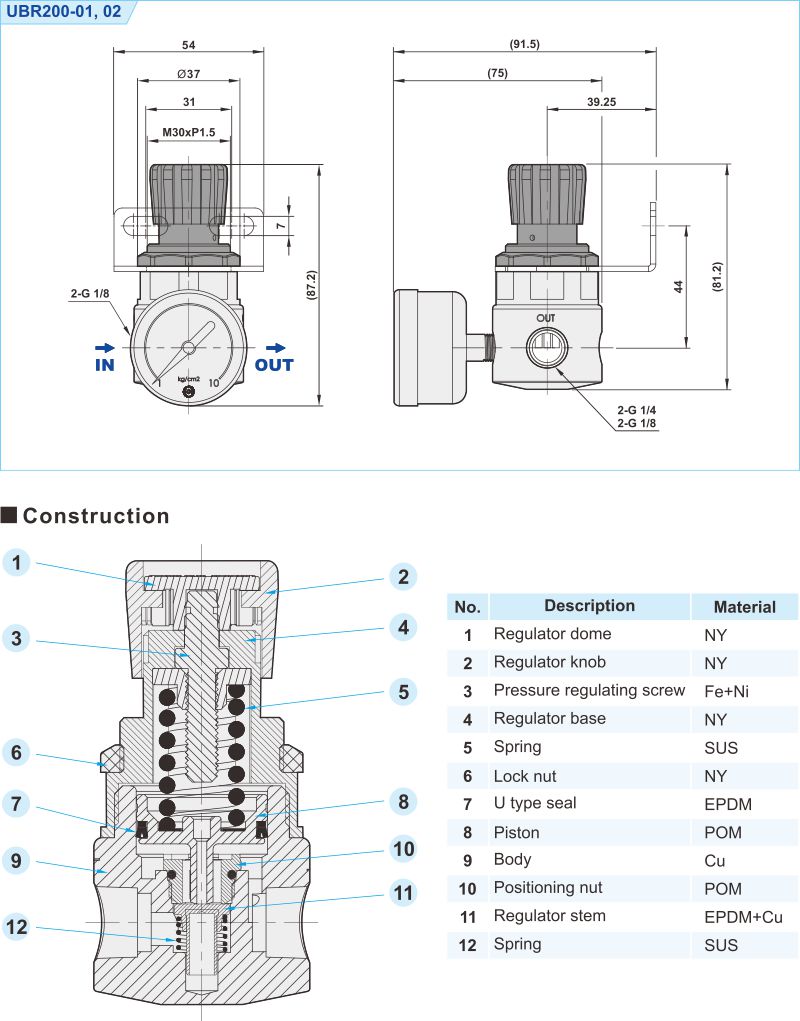

proimages/2_2020_en/1/3_Dimensions/UBR200.jpg

proimages/2_2020_en/1/6_Symbol/UBR200-en.jpg
