Product Name : GUIDE CYLINDER
GUIDE CYLINDER
    Enlargement



    • Integration of standard cylinder and guide rod.
    • Cylinder body connected with guide rod by floating joint; without friction in operation.
    • Two guide rods offer high non-rotating accuracy.
    • Two guide rod bearings for selection.
    • The linear bearing is applicable to high speed acting and light loads.
    • The bush bearing is applicable to low speed acting and heavy loads.
    • Sensor switch and shock absorber are optional accessories.

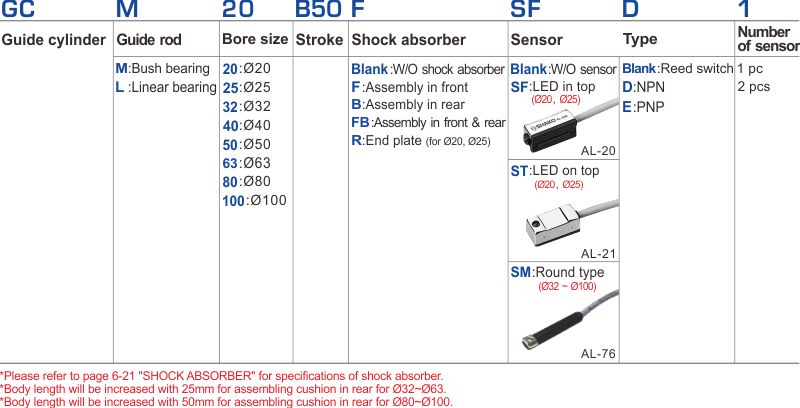

    proimages/2_2020_en/3/1_How_to_order/GC.jpg

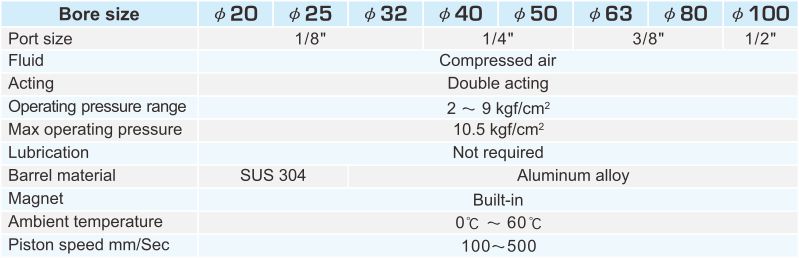

    proimages/2_2020_en/3/2_specifications/GC.jpg

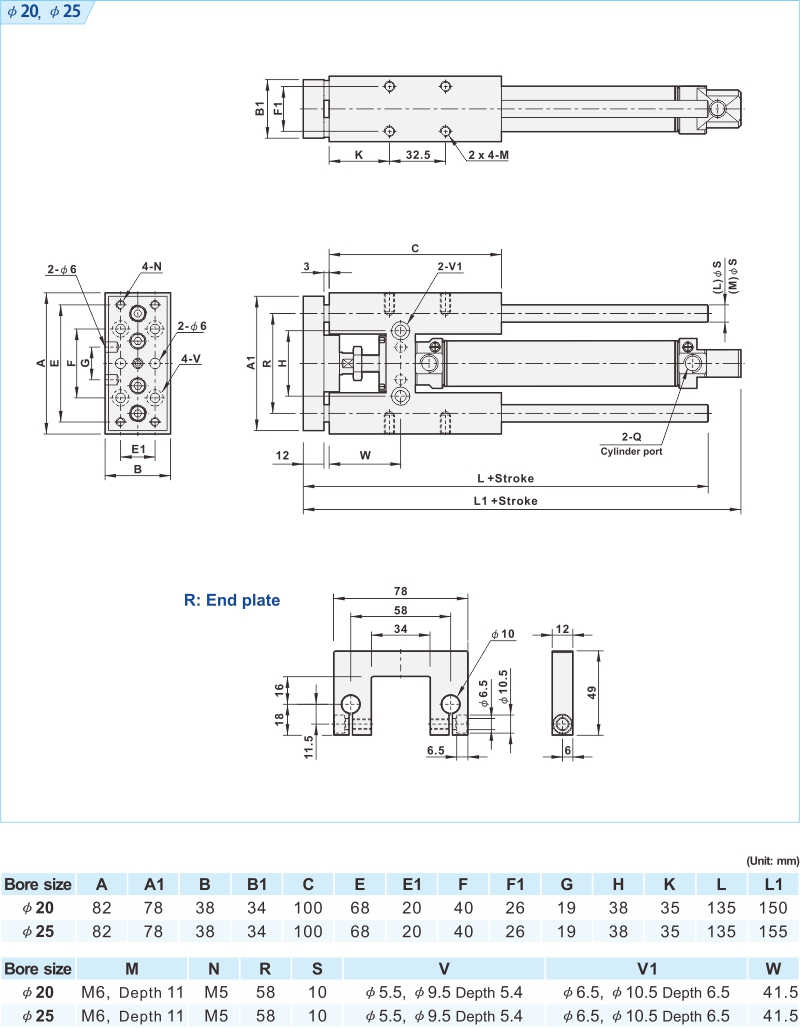

    proimages/2_2020_en/3/3_Dimensions/GC-1.jpg

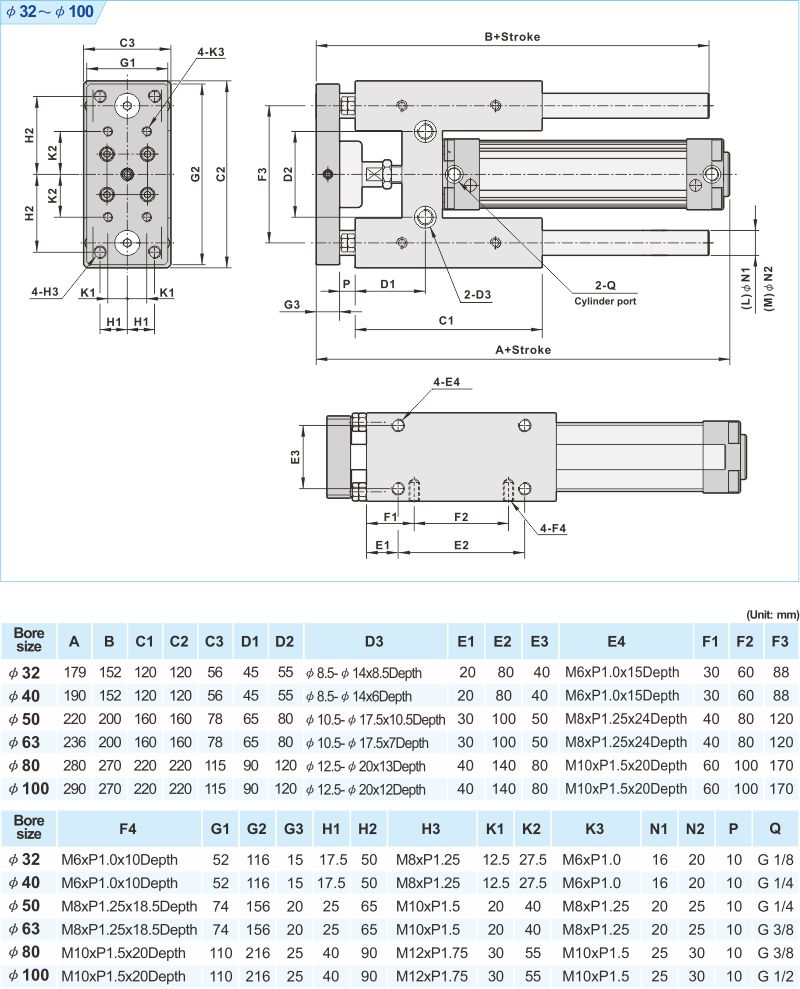

    proimages/2_2020_en/3/3_Dimensions/GC-2.jpg

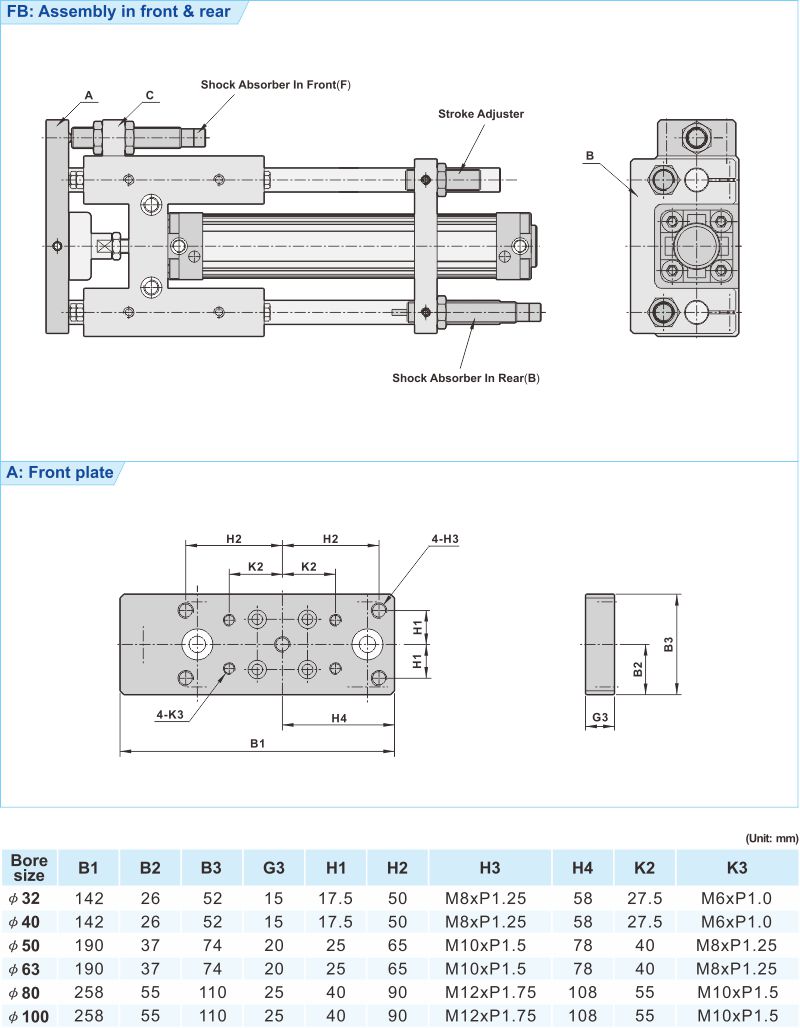

    proimages/2_2020_en/3/3_Dimensions/GC-3.jpg

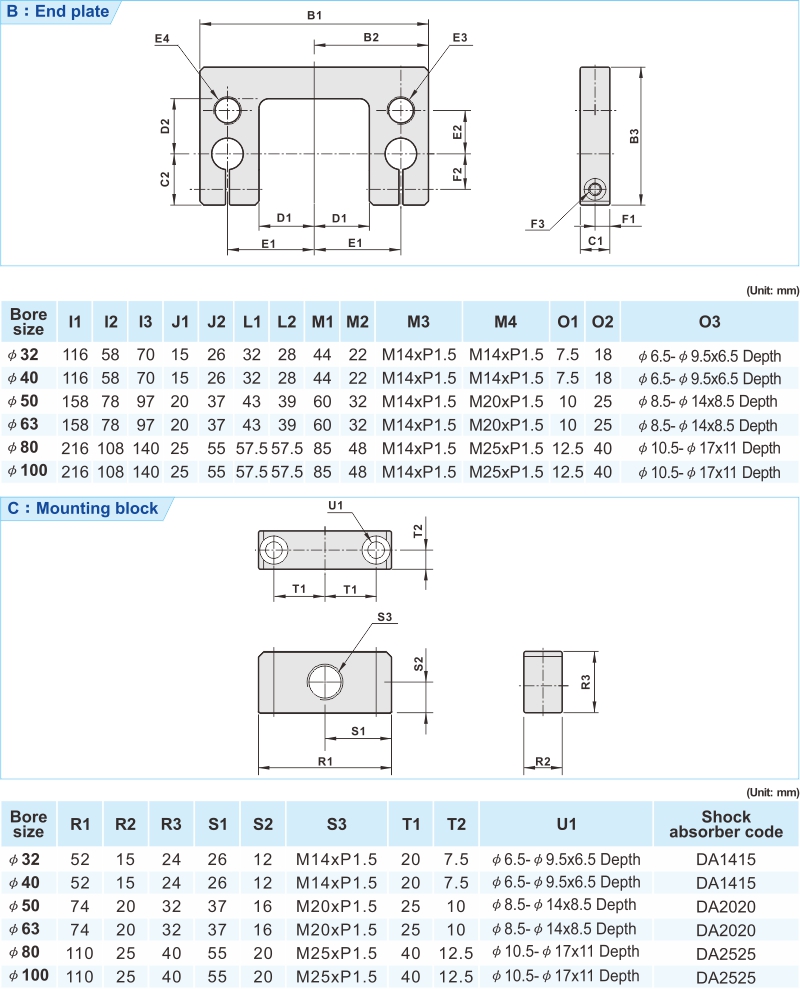

    proimages/2_2020_en/3/3_Dimensions/GC-4.jpg

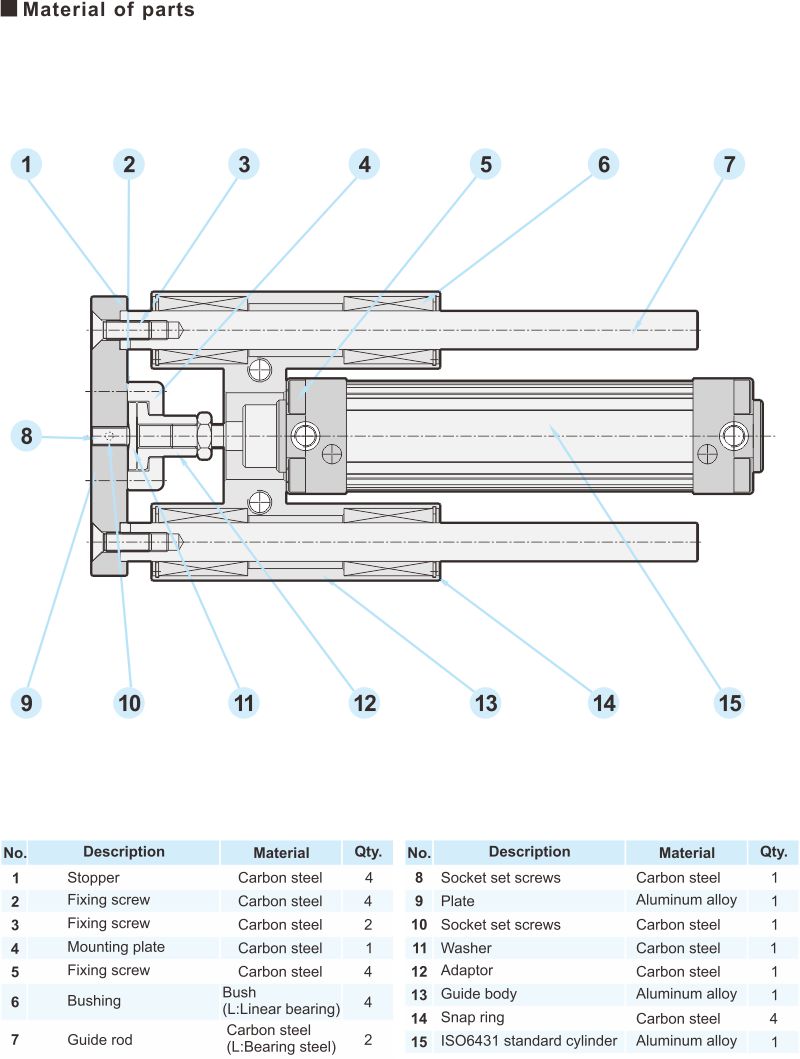

    proimages/2_2020_en/3/3_Dimensions/GC-5.jpg

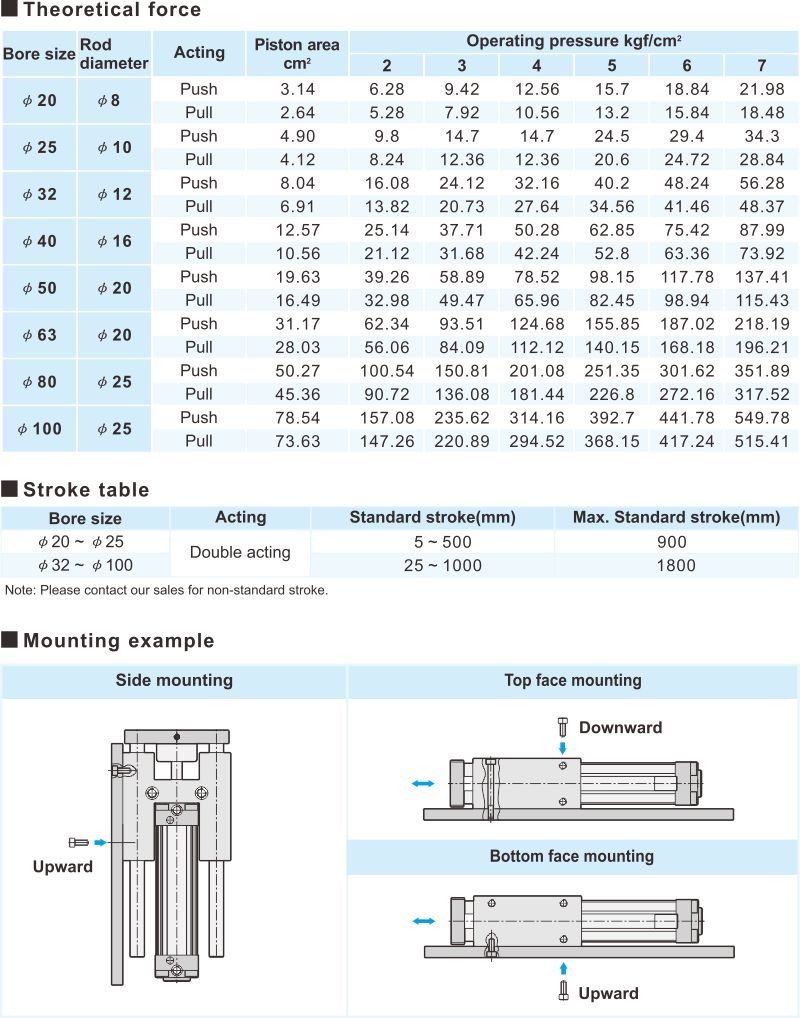

    proimages/2_2020_en/3/3_Dimensions/GC-6.jpg



      proimages/image/PDF(72x72).jpg

     (registered visitor) download CAD model or email CAD model is allowed.

     (non-registered visitor) download CAD model or email CAD model is not allowed.

    Attentions:

    • The access to see 2D/3D CAD model without registration.
    • Please assure the model number and specification for requested product before download CAD model.
    • Please check if the dimensions and tolerance of CAD model is identical with the catalogue in PDF. Please contact your sales for any difference.
    • For any dimension not available to see on CAD model, please contact your sales.
    • After choosing the model number and specification, please click ¨CAD download¨ to tick the format of file you need →Start download →   Start download → download.
    • The direction in video for 2D/3D download.
    • Registration step description.
