Ultrasonic Air Cylinder ICA63 Model
    Enlargement
    Product Name : ULTRASONIC CYLINDER
    Product Description

    • Temperature range ambient -5C to +60C (without freezing)
    • Bore 63mm Stroke 75mm

    Feature:
    • Smooth & stable piston acting.
    • Stable & slow piston movement in cushion area.
    • Ultra fast cylinder, cylinder speed 50 to 700mm per second.
    • Double acting.



    Product Caption:

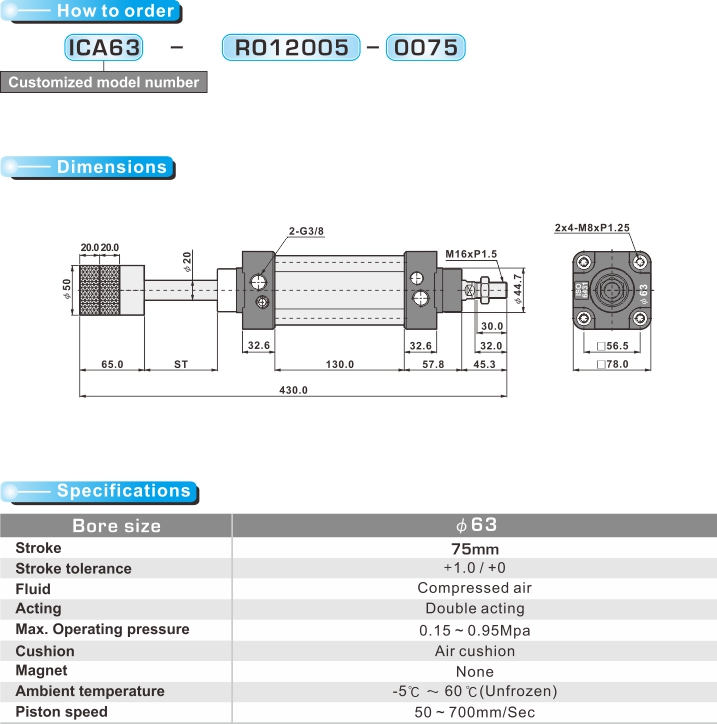

    Size:

    Bore size: φ63


    Relevant Documents:
    Download:

       proimages/image/dwg.jpg   proimages/image/3D.jpg
