Product Name : 2/2 WAY WATER-HAMMER PROOF SOLENOID VALVE (Brass series, Pilot acting)
2/2 WAY WATER-HAMMER PROOF SOLENOID VALVE (Brass series, Pilot acting)
    Enlargement



    • Closing time delay 7 to 10 seconds to prevent water hammer.
    • Pilot acting for low starting pressure.
    • Large flow rate and high working pressure.
    • Stainless steel stem provides exceptional durability.
    • Ex-proof coil T4 as optional accessory.
    • Timer for setting on/off time as optional accessory.

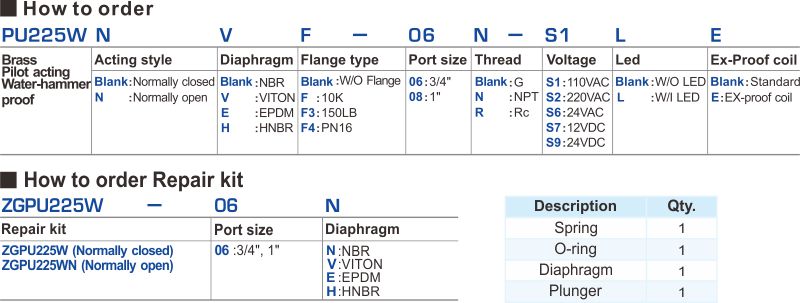

    proimages/2_2020_en/4/1_How_to_order/PU225W.jpg

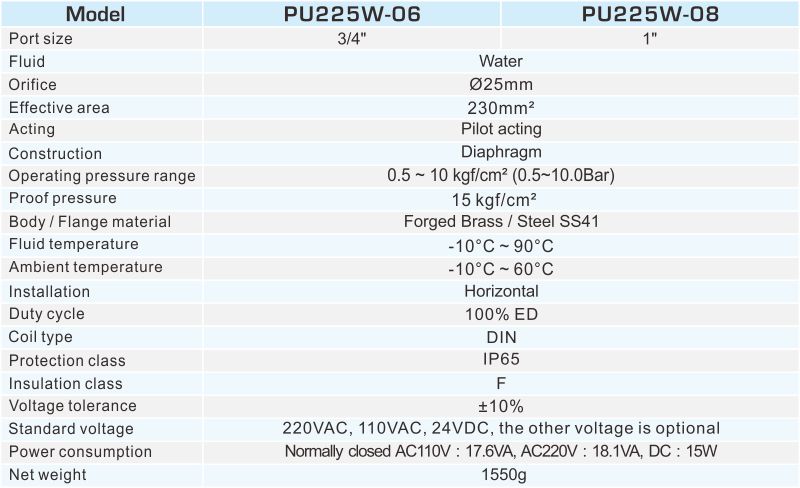

    proimages/2_2020_en/4/2_specifications/PU225W.jpg

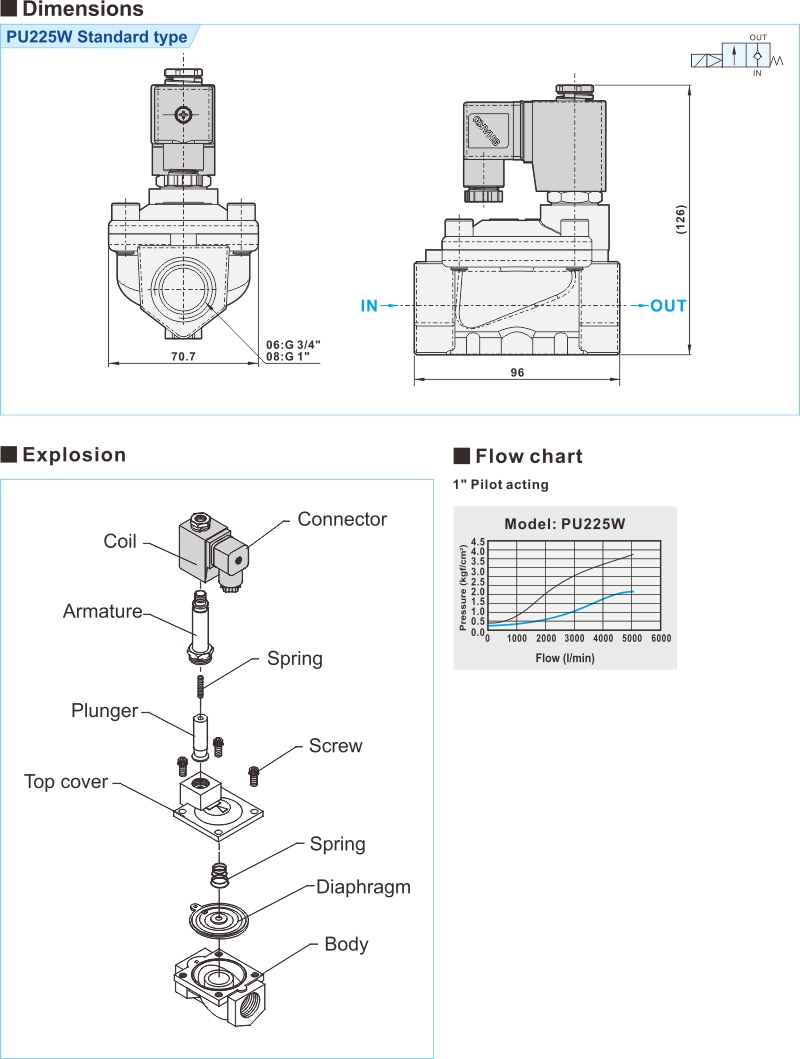

    proimages/2_2020_en/4/3_Dimensions/PU225W.jpg







      proimages/image/dwg.jpg   proimages/image/3D.jpg



      proimages/1_2020_tw/4/6_Symbol/PU225W.jpg
