1/4 ", 3/2 VÁLVULAS MECÁNICAS DE CAMINO
    Enlargement
    Product Name : 1/4 ", 3/2 VÁLVULAS MECÁNICAS DE CAMINO
    Caracteristica:
    • To be installed in moving devices like air cylinder; slide...etc.

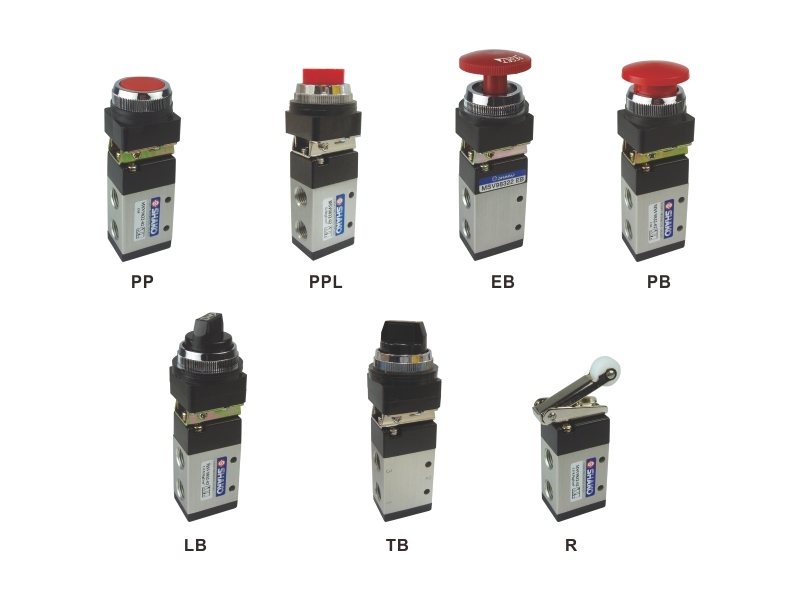

    • Various operating styles.
    • Panel bore size φ30 (Option φ25).
    Leyenda del producto:

    proimages/product_en/MECHANICAL_VALVES/MSV9832-1.jpg

    proimages/product_en/MECHANICAL_VALVES/MSV9832-2.jpg

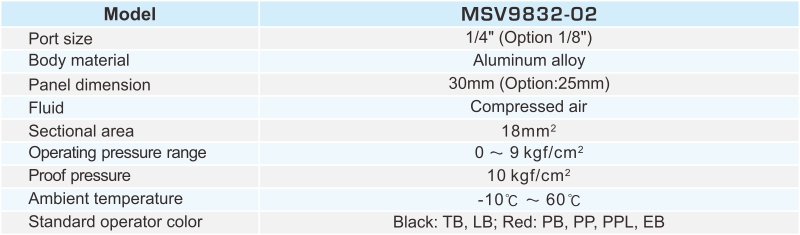

    Tamano:

    Tamano del puerto: 1/8" 1/4"

    Documentos importantes:
    Descargar:

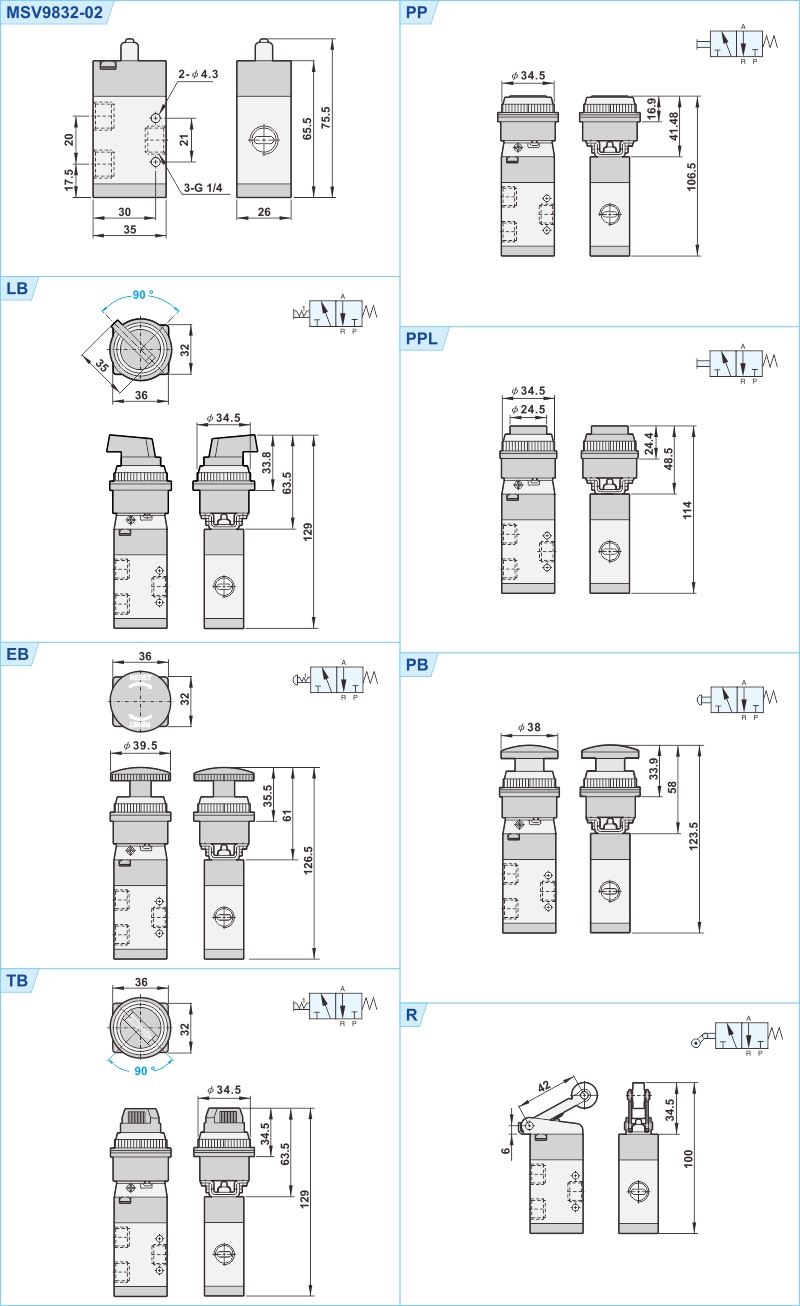

       proimages/image/dwg.jpg   proimages/image/3D.jpg
