Parallel Gripper (2-Finger)

Product Name : Parallel Gripper (2-Finger)
Parallel Gripper (2-Finger)
    Enlargement
    Back

    • Compact design to ensure minimum interference while operating; robust T rail design, ensure accurate gripping.
    • Can reach maximum torque suitable for long jaws design.

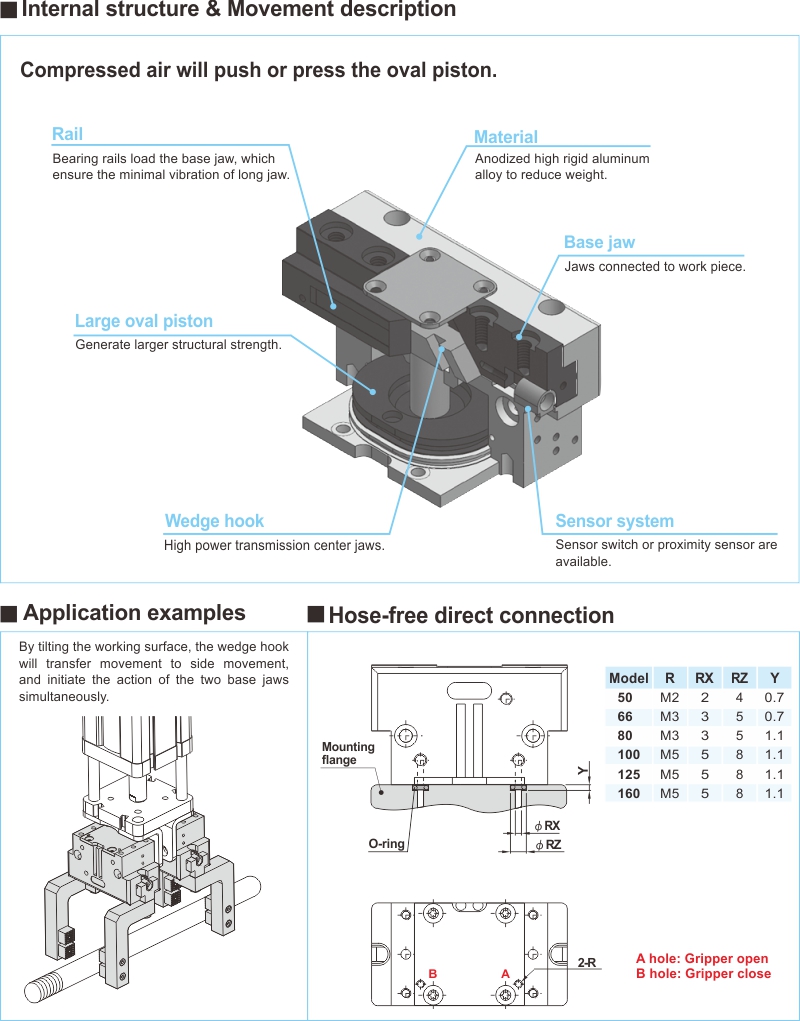

    • Oval piston-driven design ensure maximum gripping force.
    • Hose-free direct connection: Air supply channel can connect directly without piping or through tread to assure the flexibility of supplying compressed air on any kind of automation system.

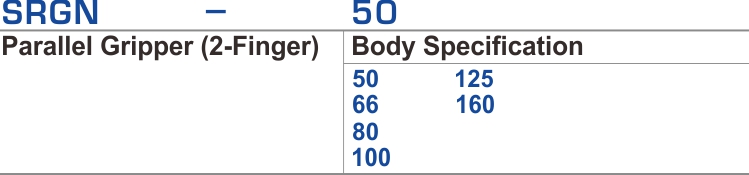

    proimages/2_2020_en/3/1_How_to_order/SRGN.jpg

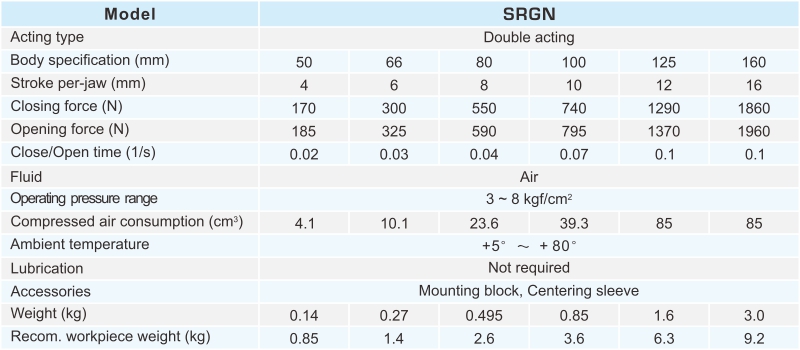

    proimages/2_2020_en/3/2_specifications/SRGN.jpg

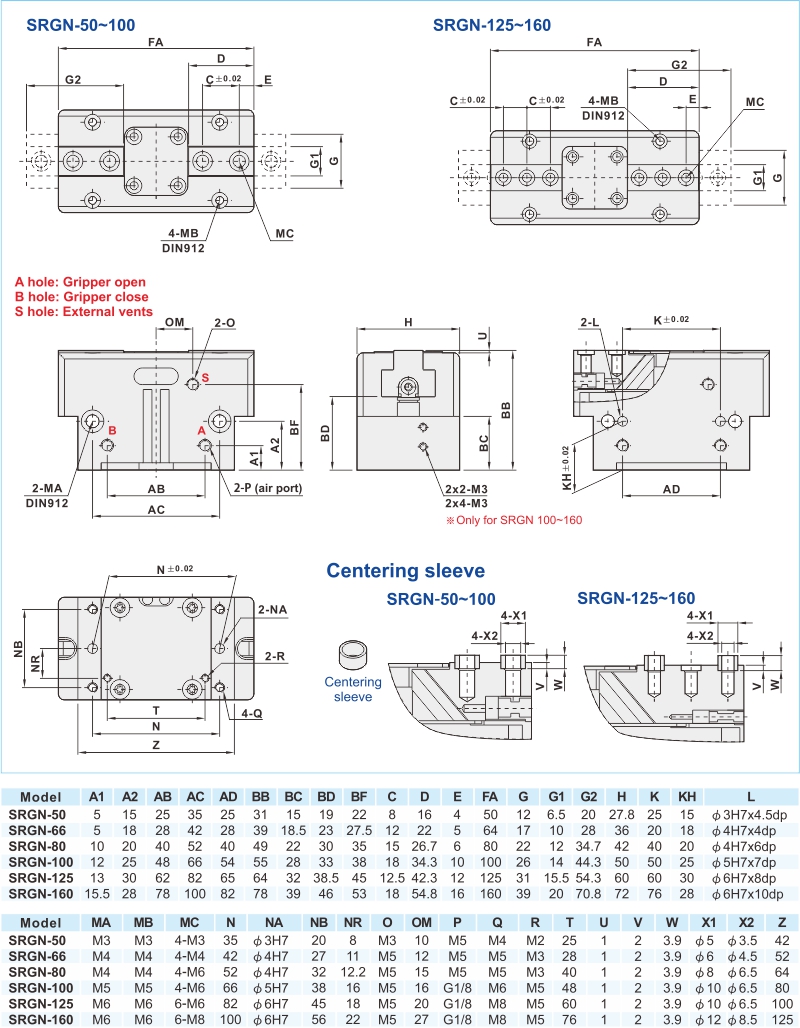

    proimages/2_2020_en/3/3_Dimensions/SRGN-1.jpg



    proimages/2_2020_en/3/3_Dimensions/SRGN-2.jpg

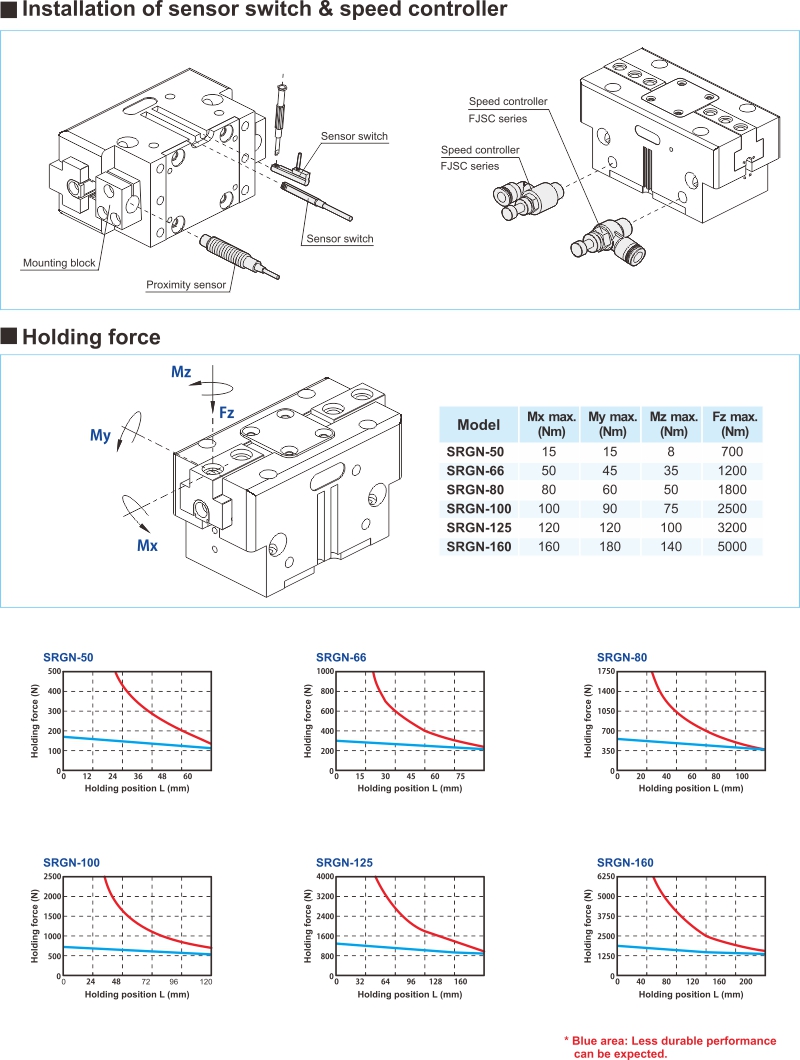

    proimages/2_2020_en/3/3_Dimensions/SRGN-3.jpg

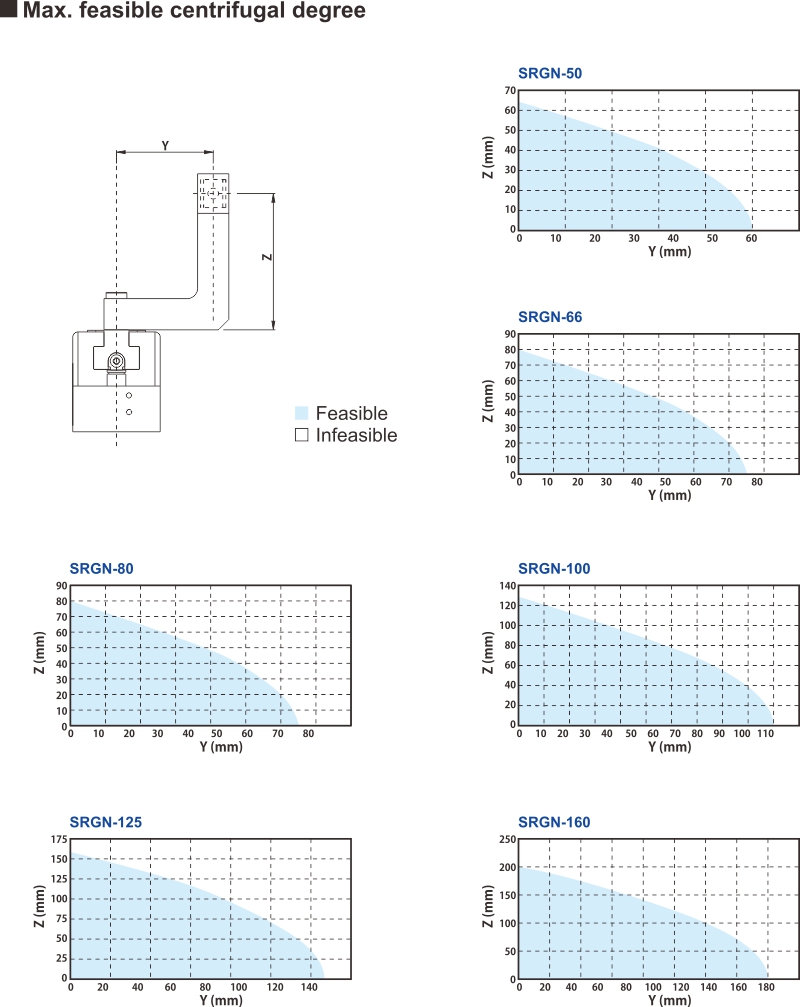

    proimages/2_2020_en/3/3_Dimensions/SRGN-4.jpg



      proimages/image/PDF(72x72).jpg

     (registered visitor) download CAD model or email CAD model is allowed.

     (non-registered visitor) download CAD model or email CAD model is not allowed.

    Attentions：

    • The access to see 2D/3D CAD model without registration.
    • Please assure the model number and specification for requested product before download CAD model.
    • Please check if the dimensions and tolerance of CAD model is identical with the catalogue in PDF. Please contact your sales for any difference.
    • For any dimension not available to see on CAD model, please contact your sales.
    • After choosing the model number and specification, please click ¨CAD download¨ to tick the format of file you need →Start download →   Start download → download.
    • The direction in video for 2D/3D download.
    • Registration step description.
