36mm 2/2 Way COIL

36mm 2/2 Way COIL
    Enlargement

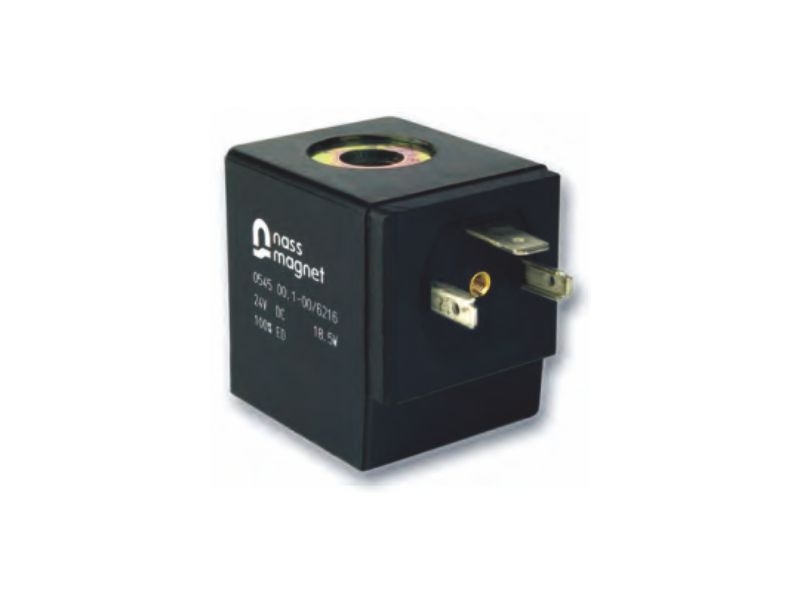

    Product Name : 36mm 2/2 Way COIL
    Back
    Product Description

    For PE220H, SPUY220 series



    1. The data of power and final temperature are valid for the standard voltages; the power consumption may be higher at different nominal voltages.
    2. Function is warranted at max. ambient temperature and operating temperature.
    3. The data of final temperature is valid for thermoplastic valve bodies and thermoplastic encapsulated coils. The temperature will be approximately 10-20K higher if arrangemeut devices in modular design, and this will cause a reduction of the magnetic force.
    4. For additional information see German standard "Specification for Electronic Devices"DIN VDE 0580.
