NUF Model Pneumatic Filter - SHAKO FRL Units Manufacturer

shako VR Virtual Exhibition SHAKO CO., LTD. (istaging.com)

Eco Power-Saving Solenoid Valve

Product Name : FILTER

Enlargement

Remove water and particle effectively.
40µm and 5µm filter element are easily interchangeable and replaceable.

proimages/2_2020_en/1/1_How_to_order/NUF.jpg

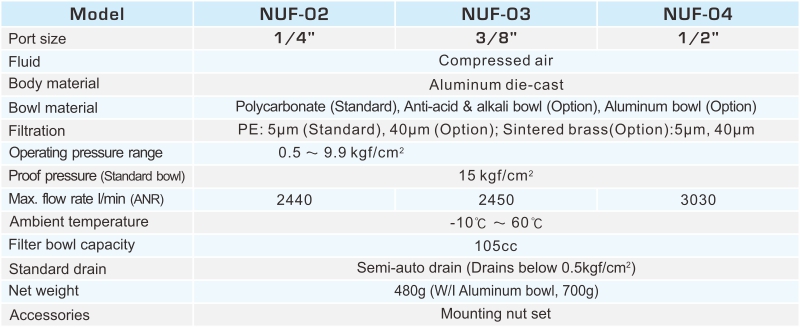

proimages/2_2020_en/1/2_specifications/NUF.jpg

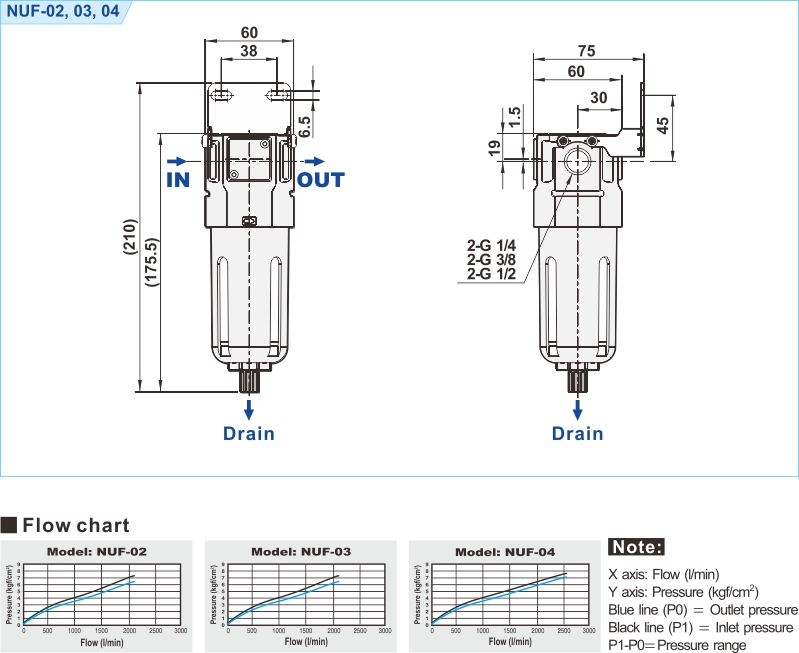

proimages/2_2020_en/1/3_Dimensions/NUF.jpg

proimages/2_2020_en/1/6_Symbol/NUF+U.jpg
