Product Name : AUTOMATIC DRAIN
AUTOMATIC DRAIN
    Enlargement

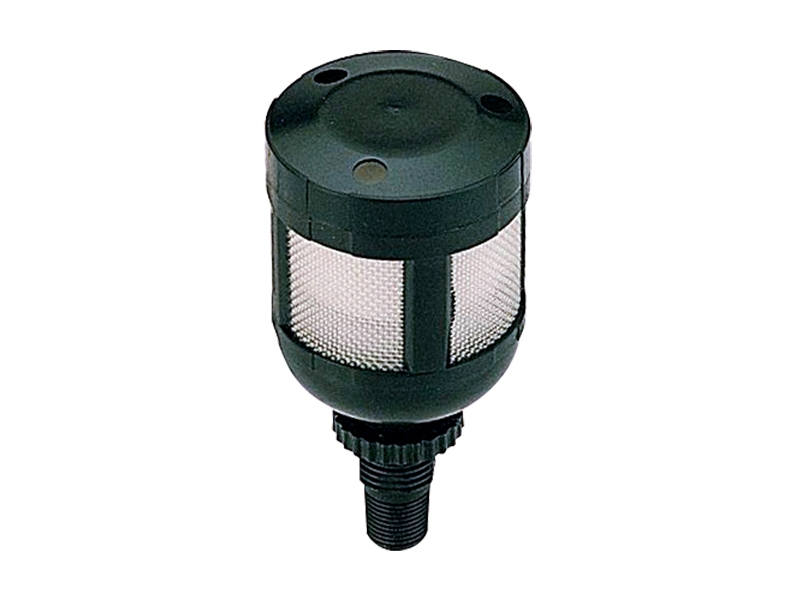

    D0014W

    1. Completely drain water together with polluted particles and oils at once without remnants on filter bowl.
    2. Automatically remove remaining water on filter bowl after air pressure is shut off.
    3. Working pressure: 0.5~9kgf/c㎡
      Proof pressure: 15kgf/c㎡
      Ambient temperature: -5~+60 (No freezing)

    AD-01

    1. Working pressure: 0.8 ~ 10 kgf/c㎡
    2. Leverage design and electrical power free, shorter and smaller than competitors products.
    3. Discharge capacity: 3~5cc/time.

      *Suitable for: F200A, FR500A, FRL600A, FRL700A, UAC30, UAC30A, UAC30L









    proimages/2_2020_en/1/1_How_to_order/D0014W.jpg





    proimages/2_2020_en/1/1_How_to_order/AD-01.jpg



    proimages/1_2020_tw/1/3_Dimensions/DR0014W.jpg     D0014w







    proimages/1_2020_tw/1/3_Dimensions/AD-01.jpg     AD-01







      proimages/image/dwg.jpg   proimages/image/3D.jpg
