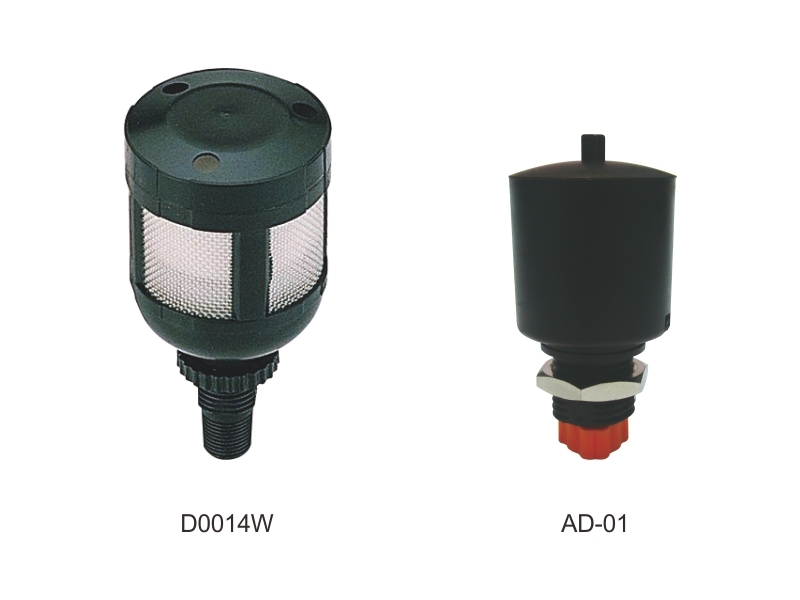

D0014W; AD-01 Automatic Drain/Miniature Automatic Drain

D0014W; AD-01 Automatic Drain/Miniature Automatic Drain
    Enlargement
    Product Name : D0014W; AD-01 Automatic Drain/Miniature Automatic Drain
    Back
    1. Completely drain water together with polluted particles and oils at once without remnants on filter bowl.
    2. Automatically remove remaining water on filter bowl after air pressure is shut off.
    3. Working pressure: 0.5~9kgf/c㎡
      Proof pressure: 15kgf/c㎡
      Ambient temperature: -5～+60 (No freezing)



    proimages/2_2020_en/1/1_How_to_order/D0014W.jpg

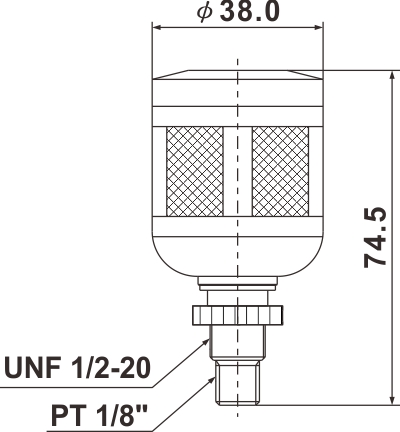

    proimages/1_2020_tw/1/3_Dimensions/DR0014W.jpg
