QUICK EXHAUST VALVES

QUICK EXHAUST VALVES
    Enlargement
    Product Name : QUICK EXHAUST VALVES
    Back



    • Increase piston speed instantly.
    • The valve is able to install on cylinder ports.

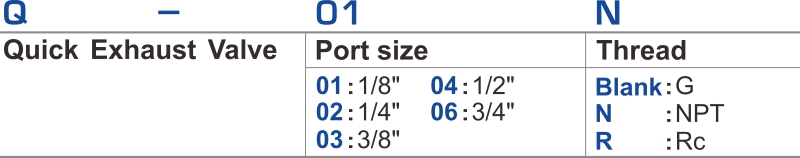

    proimages/2_2020_en/2/1_How_to_order/Q.jpg

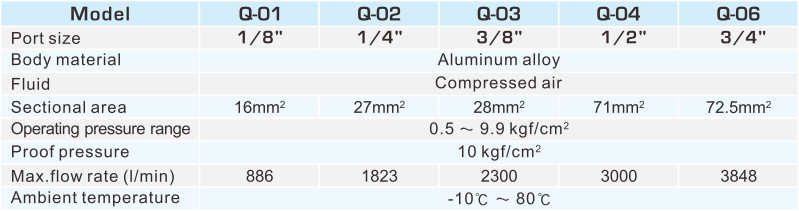

    proimages/2_2020_en/2/2_specifications/Q.jpg

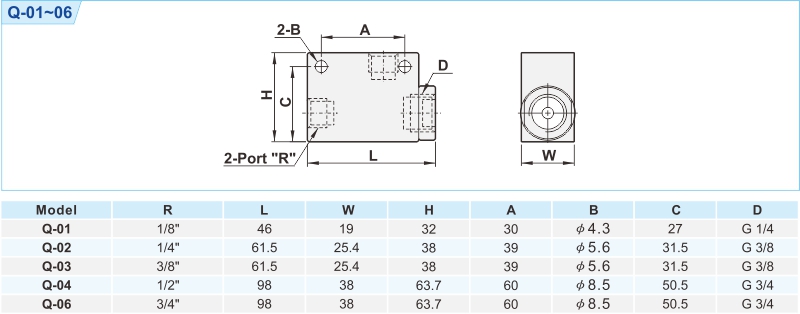

    proimages/2_2020_en/2/3_Dimensions/Q.jpg



      proimages/image/PDF(72x72).jpg

     (registered visitor) download CAD model or email CAD model is allowed.

     (non-registered visitor) download CAD model or email CAD model is not allowed.

    Attentions：

    • The access to see 2D/3D CAD model without registration.
    • Please assure the model number and specification for requested product before download CAD model.
    • Please check if the dimensions and tolerance of CAD model is identical with the catalogue in PDF. Please contact your sales for any difference.
    • For any dimension not available to see on CAD model, please contact your sales.
    • After choosing the model number and specification, please click ¨CAD download¨ to tick the format of file you need →Start download →   Start download → download.
    • The direction in video for 2D/3D download.
    • Registration step description.



      proimages/1_2020_tw/2/6_Symbol/Q.jpg
