UHR Regulator 1-8-2

shako VR Virtual Exhibition SHAKO CO., LTD. (istaging.com)

Eco Power-Saving Solenoid Valve

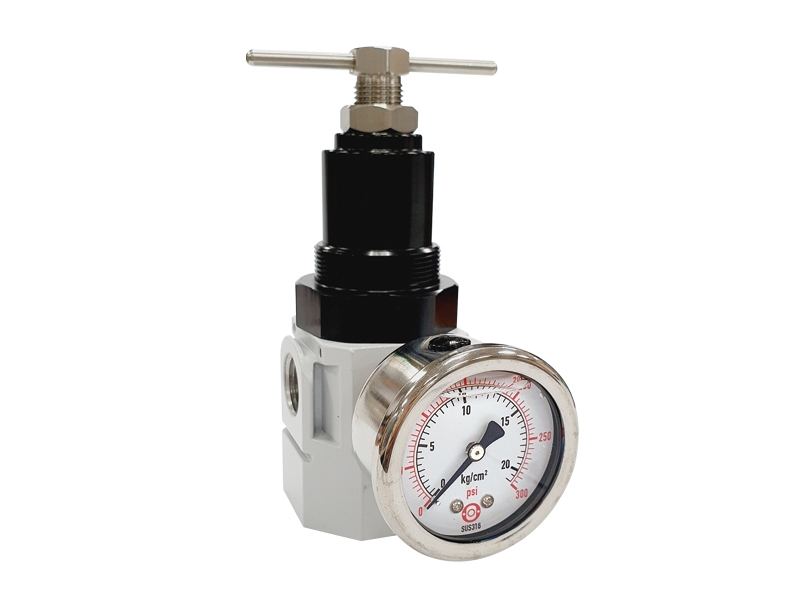

Product Name : UHR Regulator

Enlargement

Operating pressure range 0 ～ 20 kgf/cm².
Accurate and easy pressure setting.
Stainless steel pressure gauge filled oil as standard accessory for more stable pressure indication.

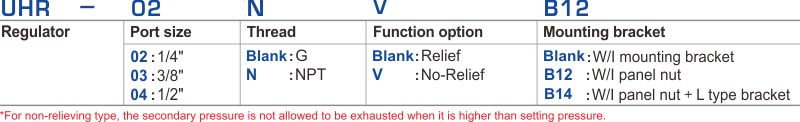

proimages/2_2020_en/1/1_How_to_order/UHR.jpg

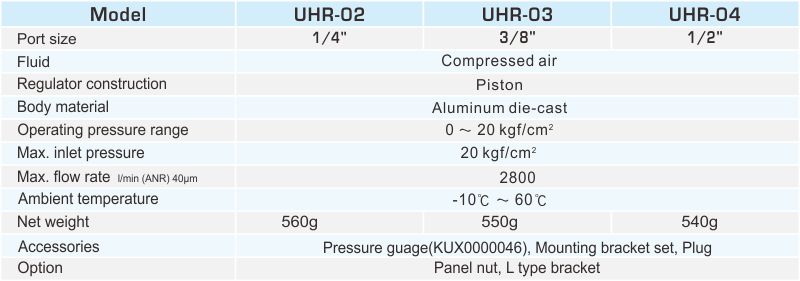

proimages/2_2020_en/1/2_specifications/UHR.jpg

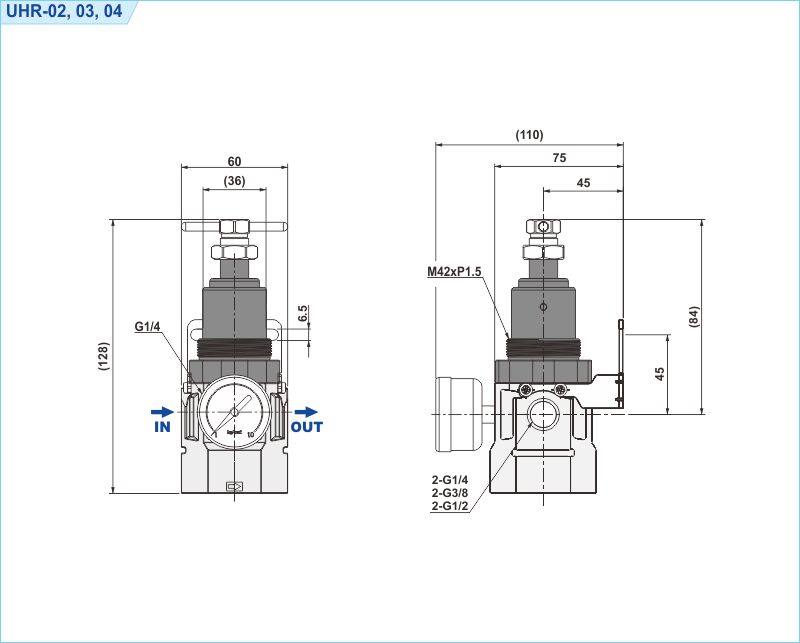

proimages/2_2020_en/1/3_Dimensions/UHR.jpg

proimages/2_2020_en/1/6_Symbol/NUR+U.jpg
