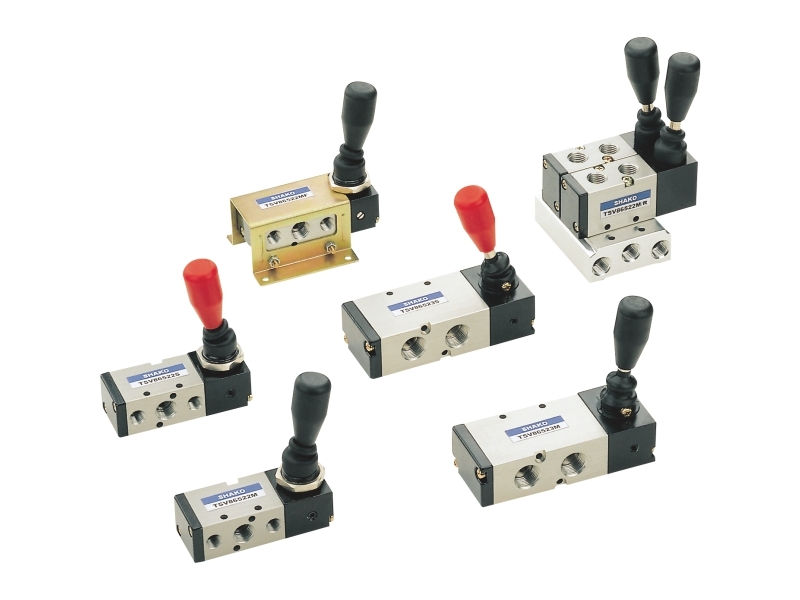

5/2 Way Hand Control Valves | TSV8652/TSV9652 Series
    Enlargement
    Product Name : VÁLVULAS DE CONTROL DE MANO 5/2
    Product Description

    • Tamaños de puerto 1/8, 1/4 o 3/8 "BSP o NPT rosca.
    • Retorno por resorte o retén, con o sin soporte de montaje.

    Caracteristica:

    • Simply operating.
    • Suitable for vacuum operation.
    • Available for panel mounting.
    • Mounting bracket as optional accessory.
    • TSV8652R-01/02 for manifold assembly.

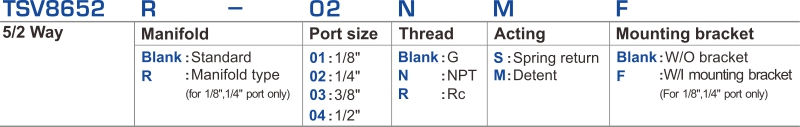

    Leyenda del producto:

    Tamano:

    Tamano del puerto: 1/8" 1/4" 3/8"

    Documentos importantes:
    Descargar:

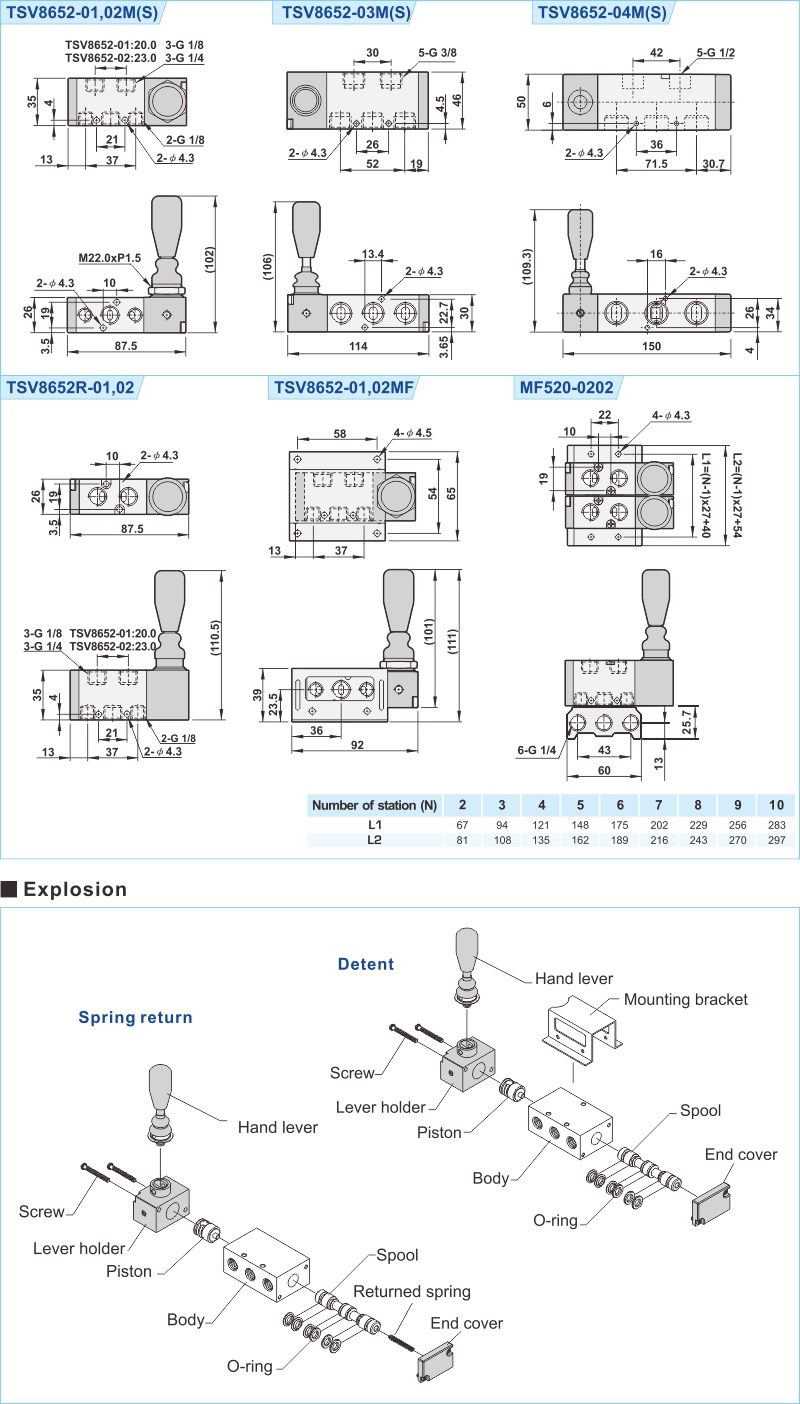

       proimages/image/dwg.jpg   proimages/image/3D.jpg
