PU225X 2/2 WAY SOLENOID VALVE (High pressure series,pilot acting)

PU225X 2/2 WAY SOLENOID VALVE (High pressure series,pilot acting)
    Enlargement
    Product Name : PU225X 2/2 WAY SOLENOID VALVE (High pressure series,pilot acting)
    Back

    • Specially for high pressure 0.5~50bar.
    • Large flow rate.
    • Quick response.
    • Ex-proof coil T4 as optional accessory.
    • Timer for setting on/off time as optional accessory.
    • CE conformity.

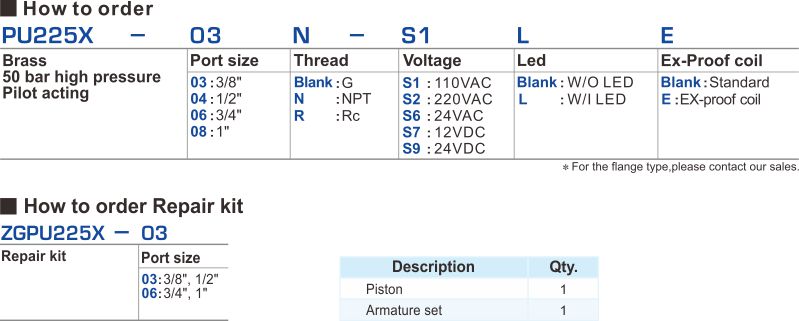

    proimages/2_2020_en/4/1_How_to_order/PU225X.jpg

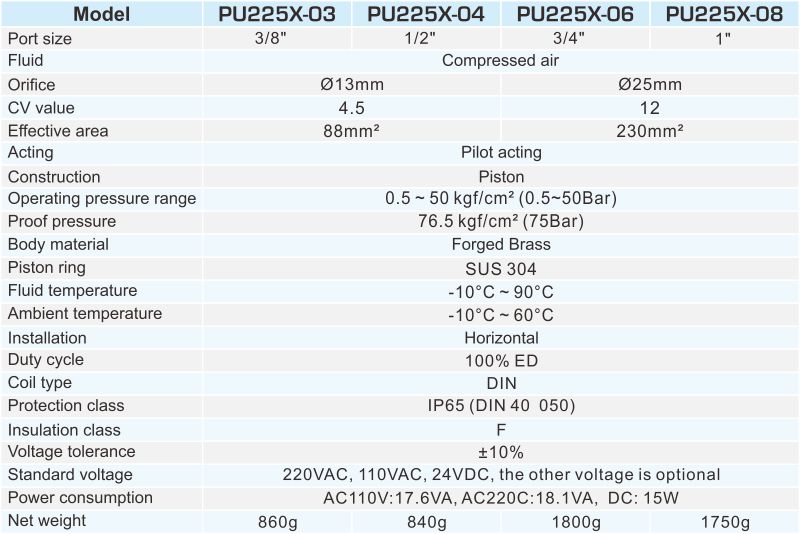

    proimages/2_2020_en/4/2_specifications/PU225X-1011.jpg

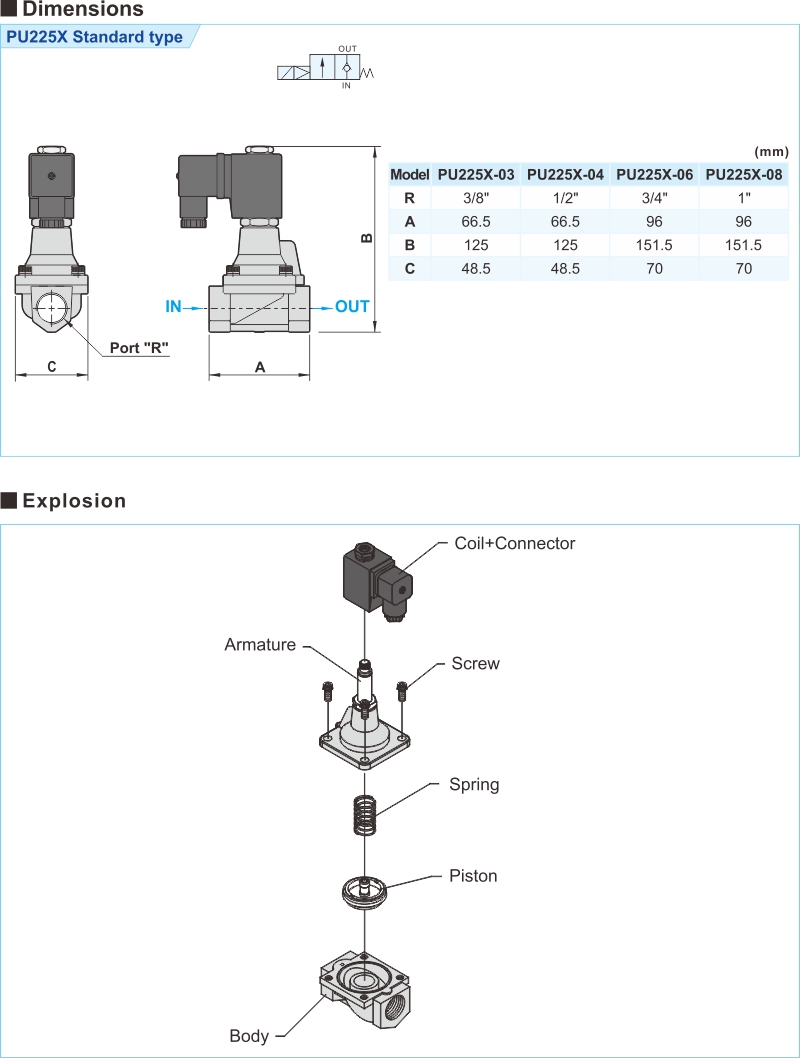

    proimages/2_2020_en/4/3_Dimensions/PU225X.jpg



      proimages/image/PDF(72x72).jpg

     (registered visitor) download CAD model or email CAD model is allowed.

     (non-registered visitor) download CAD model or email CAD model is not allowed.

    Attentions：

    • The access to see 2D/3D CAD model without registration.
    • Please assure the model number and specification for requested product before download CAD model.
    • Please check if the dimensions and tolerance of CAD model is identical with the catalogue in PDF. Please contact your sales for any difference.
    • For any dimension not available to see on CAD model, please contact your sales.
    • After choosing the model number and specification, please click ¨CAD download¨ to tick the format of file you need →Start download →   Start download → download.
    • The direction in video for 2D/3D download.
    • Registration step description.



      proimages/1_2020_tw/4/6_Symbol/PU225X.jpg
