2/2 WAY SOLENOID VALVE (Brass series, Pilot acting)

Product Name : 2/2 WAY SOLENOID VALVE (Brass series, Pilot acting)
PU225A - Brass Pilot Solenoid Valve
    Enlargement
    Back



    • Pilot acting for low starting pressure.
    • Large flow rate and high working pressure.
    • Quick response.
    • Stainless steel stem provides exceptional durability.
    • Flange type is available for JIS 10K; ANSI 150LB and PN16.
    • Ex-proof coil T4 as optional accessory.
    • Timer for setting on/off time as optional accessory.
    • CE conformity for all series.

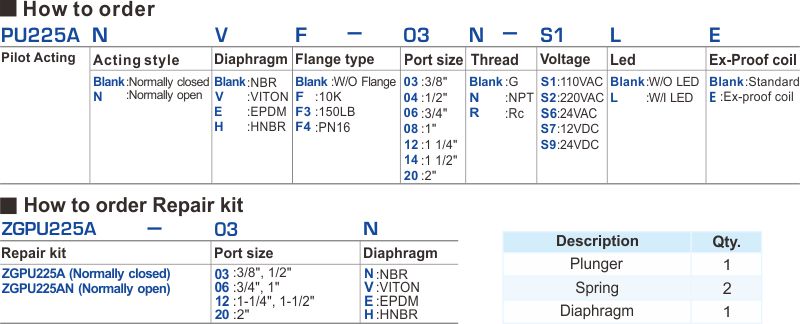

    proimages/2_2020_en/4/1_How_to_order/PU225A.jpg

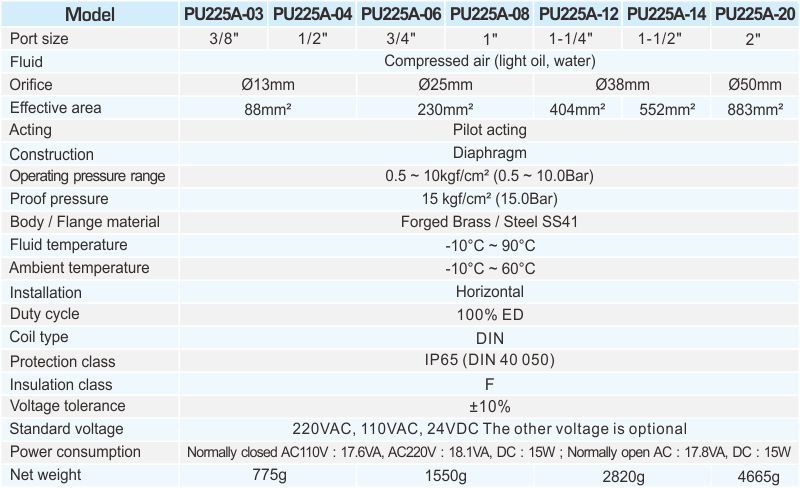

    proimages/2_2020_en/4/2_specifications/PU225A.jpg

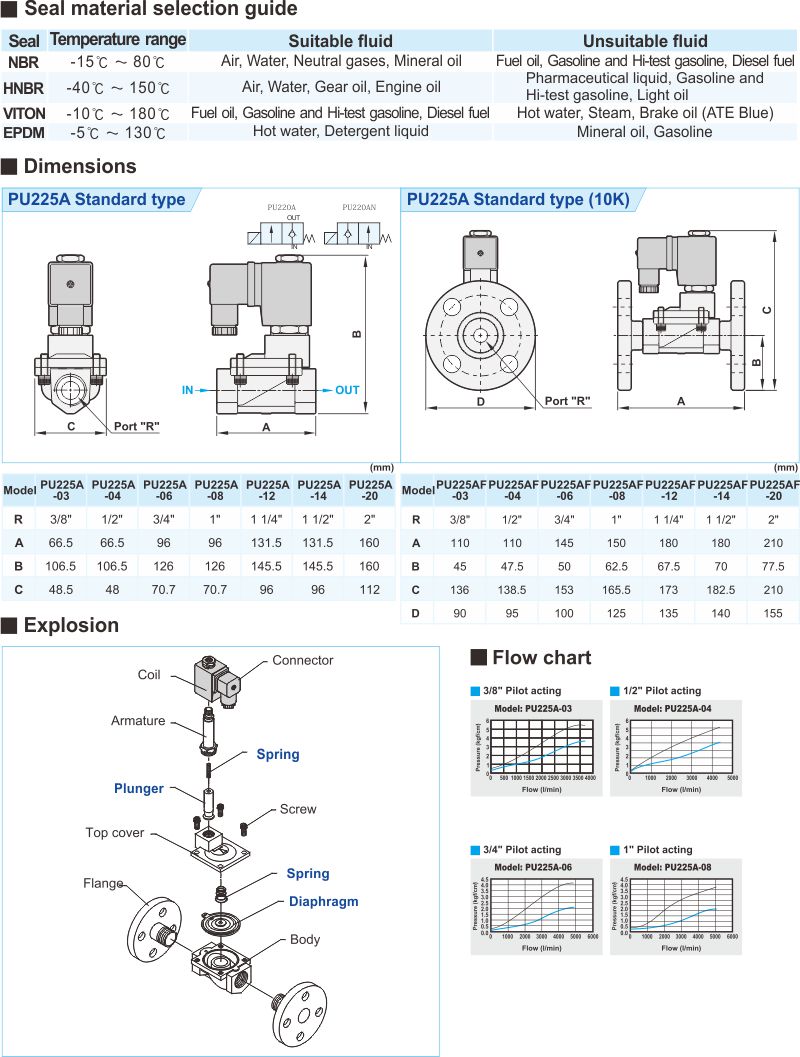

    proimages/2_2020_en/4/3_Dimensions/PU225A.jpg







      proimages/image/dwg.jpg   proimages/image/3D.jpg



      proimages/1_2020_tw/4/6_Symbol/PU225A.jpg
