PM521 Model 24V Pneumatic Solenoid Valves
    Enlargement
    Product Name : M3 5/2 WAY PILOT SOLENOID VALVE (10mm width)

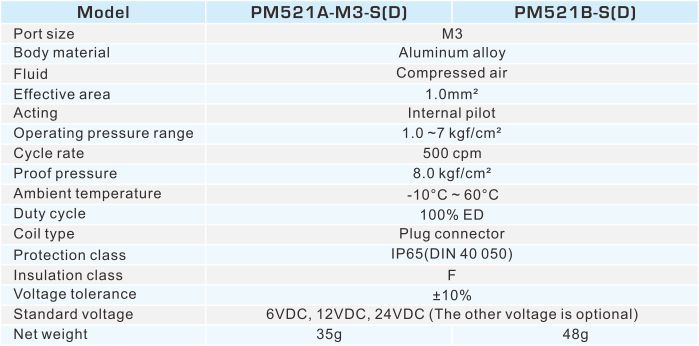

    Product Description

    • 6V, 12V, 24V Solenoid Valves
    • Pressure 1 to 7 bar, test pressure 8 bar
    • Temperature ambient -10C to +60C
    • Fast acting 500 cycles per minute, low starting pressure
    • Port M3 body ported or manifold mounted 2 to 10 stations
    • ISO - 9001 Quality Certified

    Feature:
    • Standard voltage: 6V, 12V, 24V (The other voltage is optional)
    • Plug with standard JPC design (with LED) for coil; simple installation.
    • Miniature and Compact size; 10mm width; large flow rate.
    • Anodized aluminum body and strict quality control provide a long durability.
    • Quick acting; low starting pressure.
    • Low power consumption 0.65W.

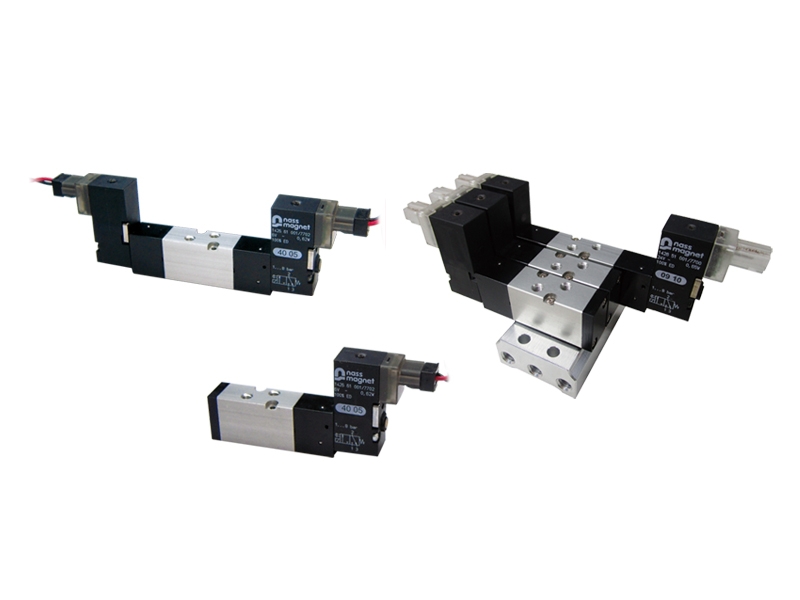

    Product Caption:

    proimages/product_en/SOLENOID_VALVES/PM521.jpg

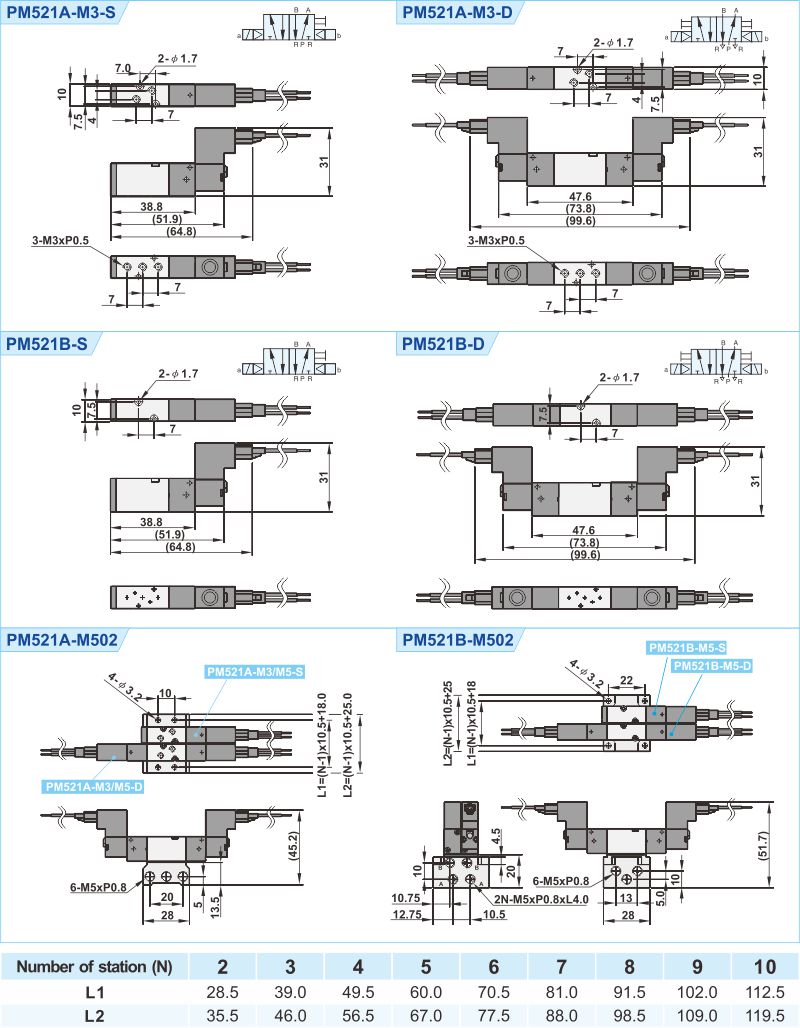

    Size:

    Port size:  M3 M5
    Relevant Documents:

    Download:

      proimages/image/dwg.jpg   proimages/image/3D.jpg
