2/2 WAY PNEUMATIC VALVE (Anti-acid & Alkali series, Direct acting)

Product Name : 2/2 WAY PNEUMATIC VALVE (Anti-acid & Alkali series, Direct acting)
2/2 WAY PNEUMATIC VALVE (Anti-acid & Alkali series, Direct acting)
    Enlargement
    Back



    • Direct acting and quick response.
    • Suitable for acid & alkali chemical fluid.
    • Fluid must be liquid.
    • Horizontal installation.
    • Anti-backflow.
    • Can be used with PU320.

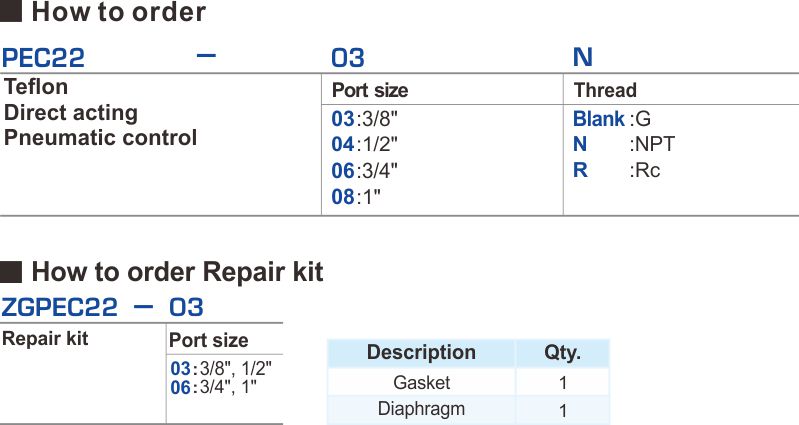

    proimages/2_2020_en/4/1_How_to_order/PEC22.jpg

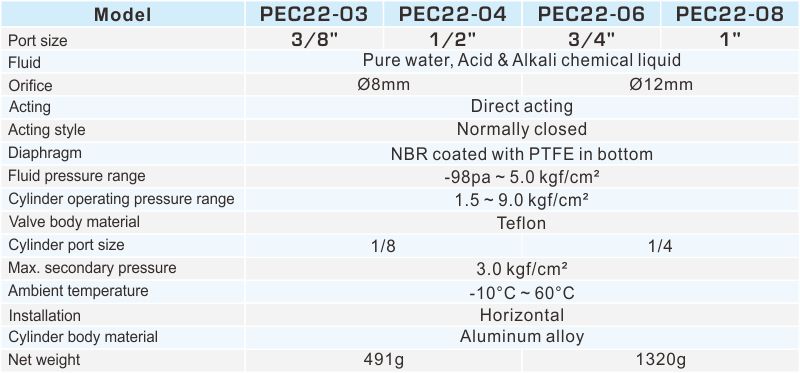

    proimages/2_2020_en/4/2_specifications/PEC22.jpg

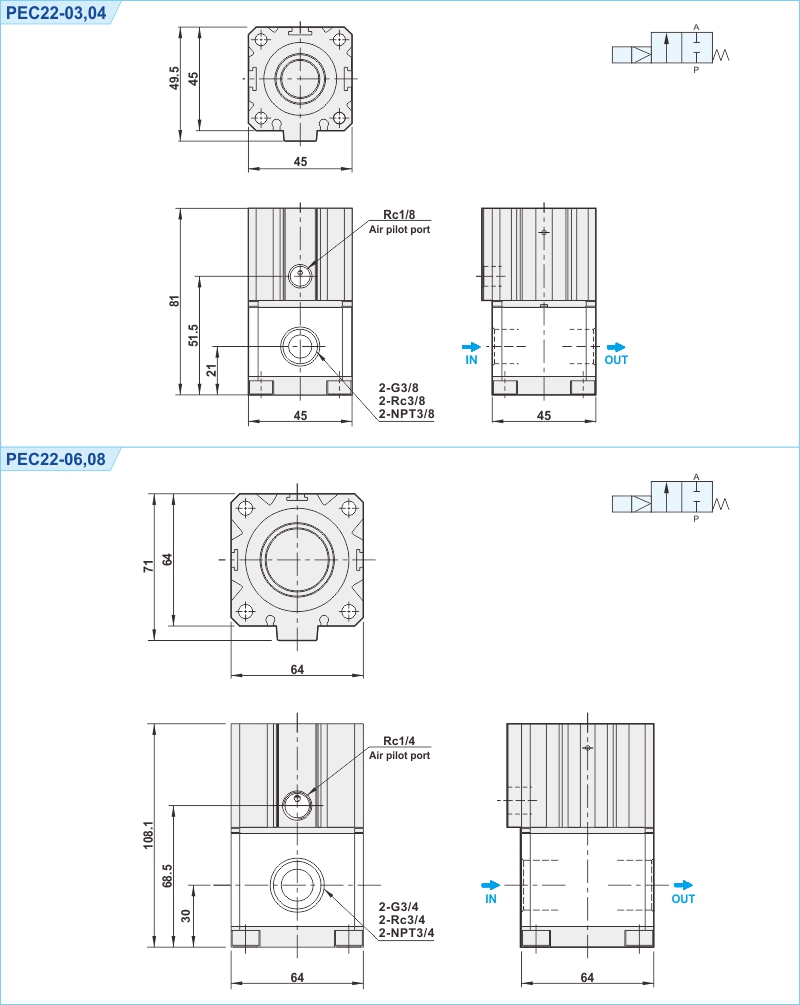

    proimages/2_2020_en/4/3_Dimensions/PEC22.jpg





     (registered visitor) download CAD model or email CAD model is allowed.

     (non-registered visitor) download CAD model or email CAD model is not allowed.

    Attentions：

    • The access to see 2D/3D CAD model without registration.
    • Please assure the model number and specification for requested product before download CAD model.
    • Please check if the dimensions and tolerance of CAD model is identical with the catalogue in PDF. Please contact your sales for any difference.
    • For any dimension not available to see on CAD model, please contact your sales.
    • After choosing the model number and specification, please click ¨CAD download¨ to tick the format of file you need →Start download →   Start download → download.
    • The direction in video for 2D/3D download.
    • Registration step description.



    proimages/1_2020_tw/4/6_Symbol/PEC22.jpg
