AM325 3/2 WAY DIRECT SOLENOID VALVE

Product Name : AM325 3/2 WAY DIRECT SOLENOID VALVE
AM325 3/2 WAY DIRECT SOLENOID VALVE
    Enlargement
    Back



    • 3/2 way solenoid valve; direct acting for quick and sensitive response.
    • Large flow rate.
    • The valve is easy to be installed; which simplifies pipe connection.



    proimages/2_2020_en/2/1_How_to_order/AM325.jpg

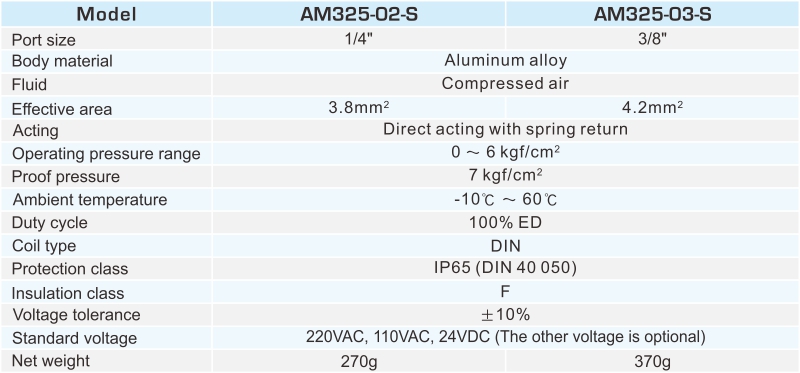

    proimages/2_2020_en/2/2_specifications/AM325.jpg

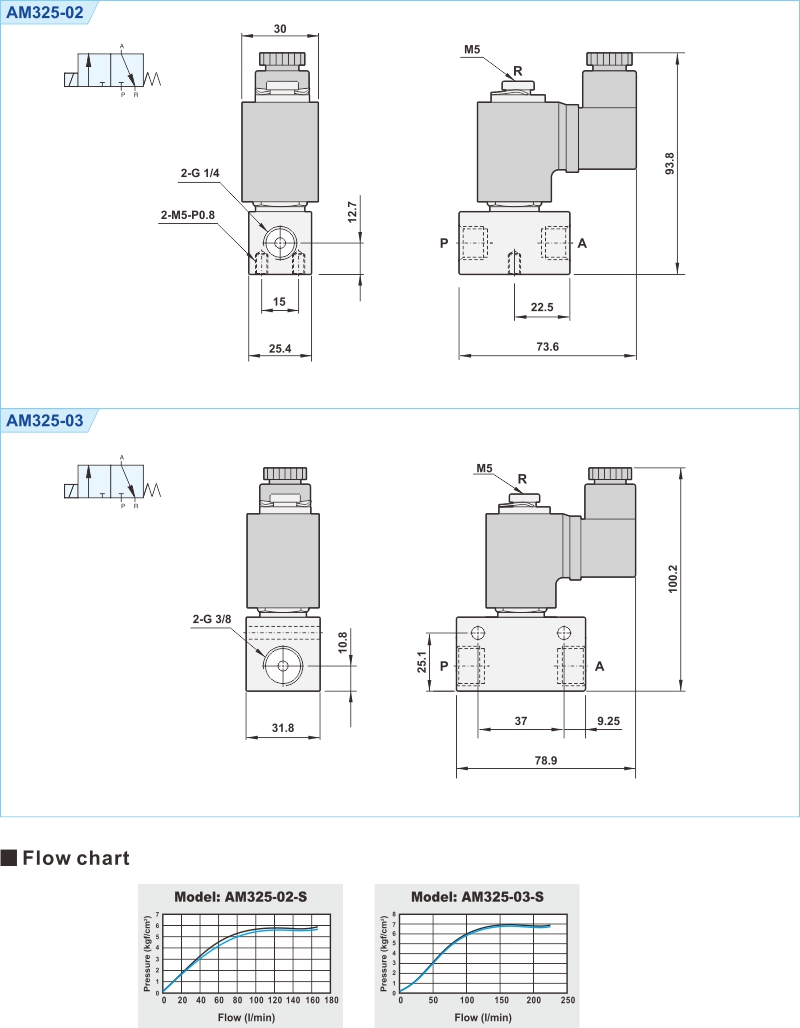

    proimages/2_2020_en/2/3_Dimensions/AM325.jpg



      proimages/image/PDF(72x72).jpg

     (registered visitor) download CAD model or email CAD model is allowed.

     (non-registered visitor) download CAD model or email CAD model is not allowed.

    Attentions：

    • The access to see 2D/3D CAD model without registration.
    • Please assure the model number and specification for requested product before download CAD model.
    • Please check if the dimensions and tolerance of CAD model is identical with the catalogue in PDF. Please contact your sales for any difference.
    • For any dimension not available to see on CAD model, please contact your sales.
    • After choosing the model number and specification, please click ¨CAD download¨ to tick the format of file you need →Start download →   Start download → download.
    • The direction in video for 2D/3D download.
    • Registration step description.
