Double Acting 32mm ISO6431 Standard Air Cylinder
    Enlargement

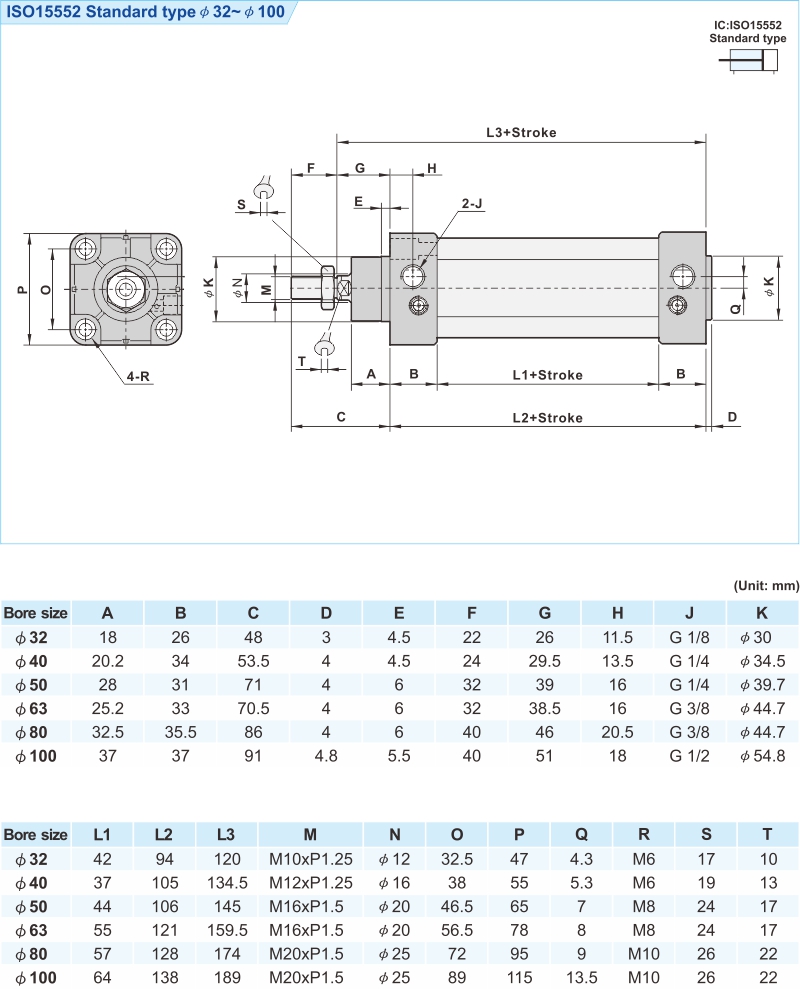

    Product Name : ISO15552 STANDARD CYLINDER
    Product Description

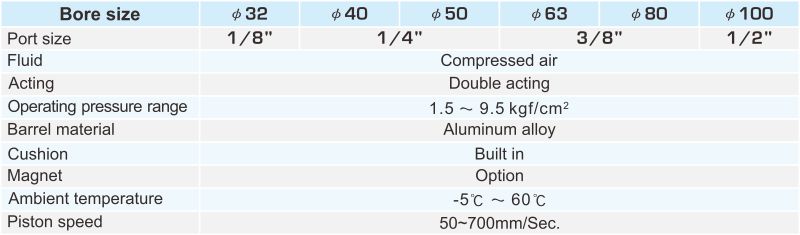

    Size:

    Bore size:φ32 φ40 φ50 φ63 φ80 φ100(mm)



    Relevant Documents:

    Download:

    proimages/image/PDF(72x72).jpg            proimages/image/2D-3D(150x79)-en.png

    Symbol:

    proimages/product_en/PNEUMATIC_CYLINDERS/IC32_IC125-0.jpg



    Feature:

    • High quality of aluminum tube provides a long service life.
    • High quality of seals ensures leakage free.
    • Various sensors for option.
    • With adjustable c

    Product Caption:

    proimages/product_en/PNEUMATIC_CYLINDERS/IC32-1.jpg

    proimages/product_en/PNEUMATIC_CYLINDERS/IC32-2.jpg

    proimages/product_en/PNEUMATIC_CYLINDERS/IC32-3.jpg

    proimages/product_en/PNEUMATIC_CYLINDERS/IC32-4.jpg

    proimages/product_en/PNEUMATIC_CYLINDERS/IC32-5.jpg

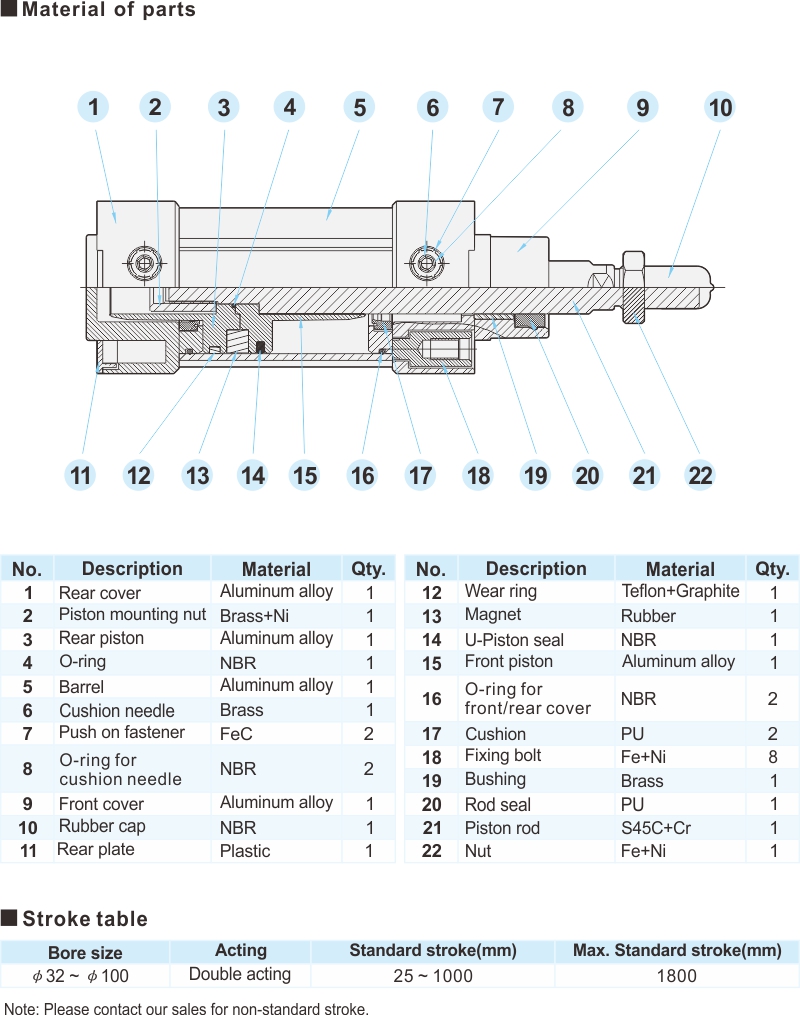

    proimages/product_en/PNEUMATIC_CYLINDERS/IC32-6.jpg
