Product Name : FREE MOUNTED CYLINDER
FREE MOUNTED CYLINDER
    Enlargement



    • Hard anodized aluminum barrel provides corrosion and wear resistance as well as long life.
    • Compact size and space saving.
    • Strict quality control ensures the product in stability and excellent performance.
    • Simple maintenance and installation.
    • Different bore sizes and strokes for selection.
    • Various sensor switches are available.

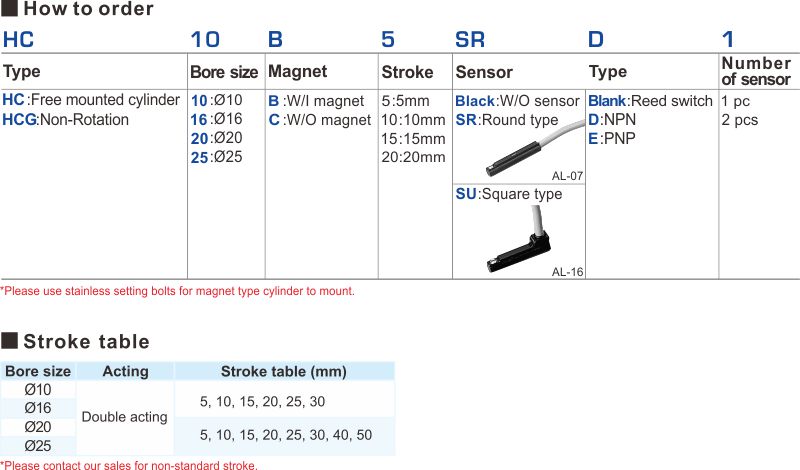

    proimages/2_2020_en/3/1_How_to_order/HC.jpg

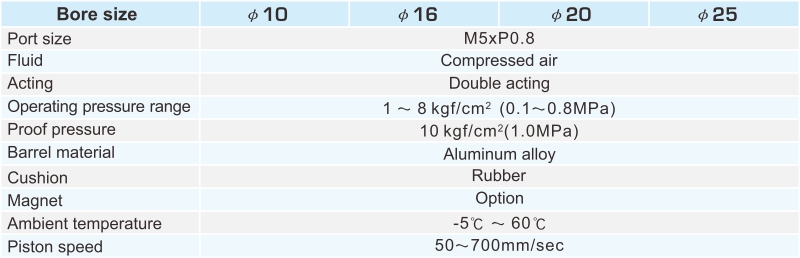

    proimages/2_2020_en/3/2_specifications/HC.jpg

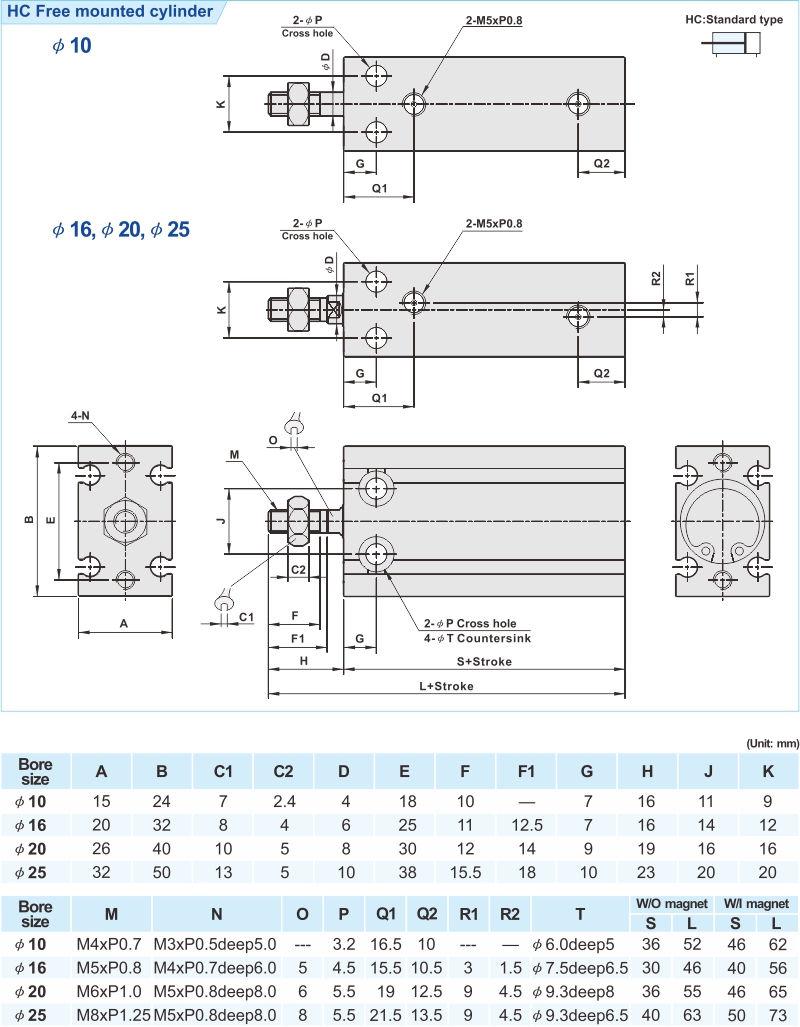

    proimages/2_2020_en/3/3_Dimensions/HC-1.jpg

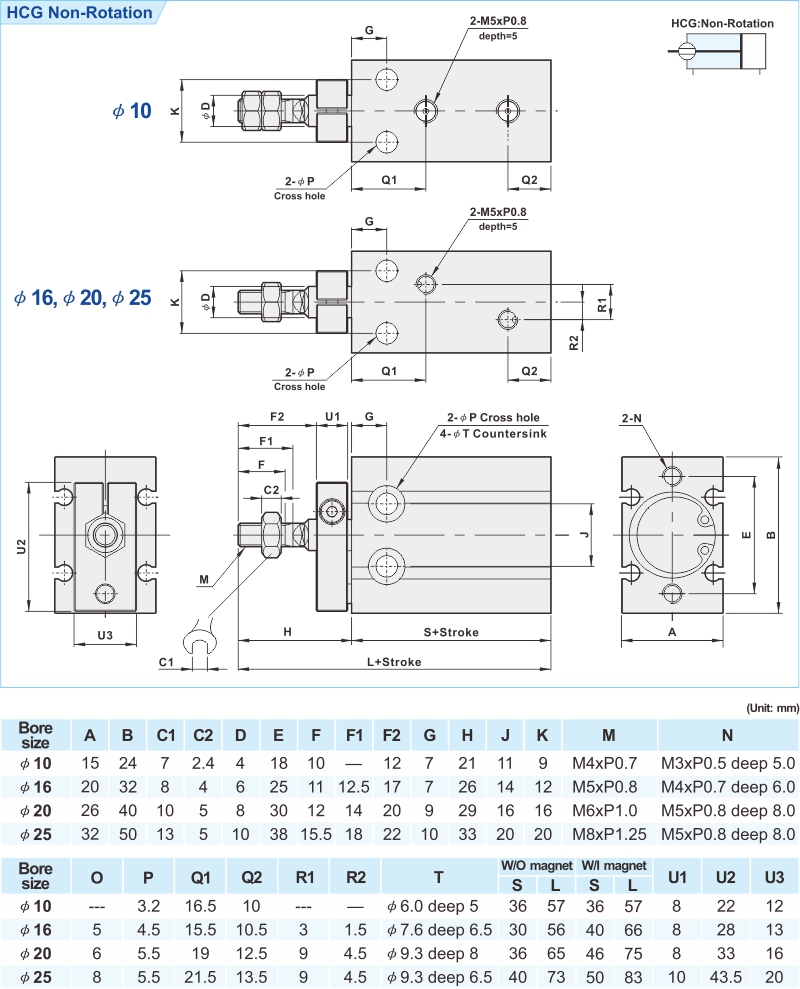

    proimages/2_2020_en/3/3_Dimensions/HC-2.jpg
