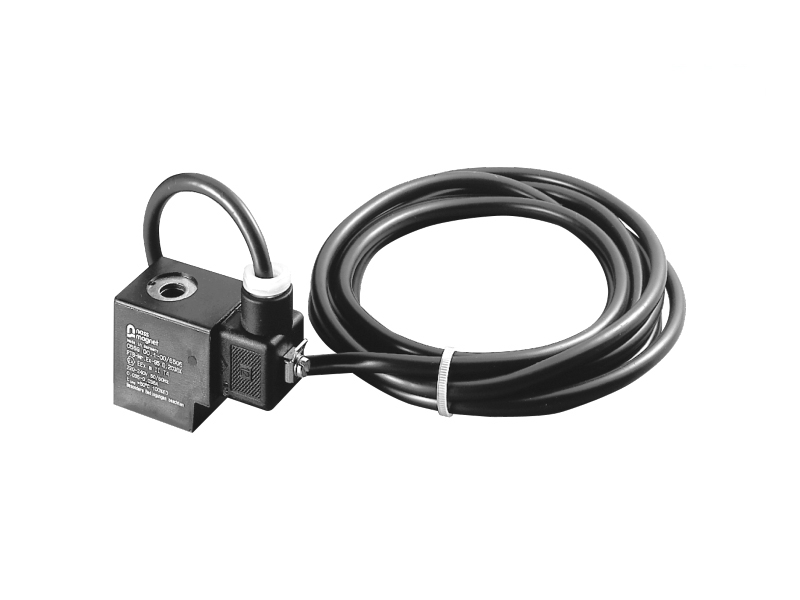

Product Name : 2/2 Way EX-Proof Coil
2/2 Way EX-Proof Coil
    Product Description

    For PU220A, PU220AR-03, PU225, AM325, SPU225, PE220, SPU220, SPUY220 series

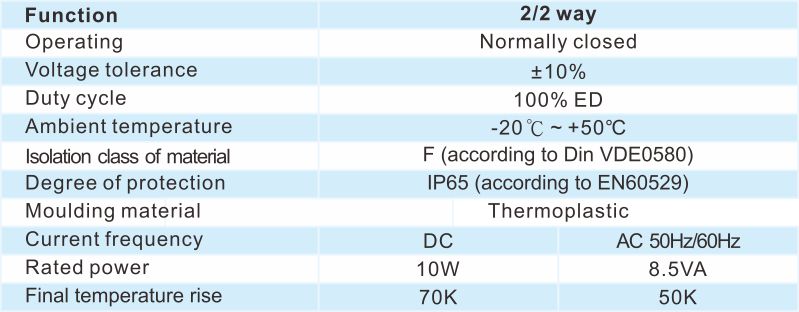

    • The data of power and final temperature are valid for the standard voltages 24VDC and 230VAC; the power consumption may be higher at different nominal voltages.
    • Function is warranted at max. ambient temperature; max. voltage change and operating temperature.
    • The data of final temperature is valid for thermoplastic valve bodies and thermoplastic encapsulated coils. The temperature will be approximately10-20K higher if the bodies are manifold.
    • This will cause a reduction of the magnetic force.
    • For additional information see German standard

        "Specification for Electronic Devices"DIN VDE 0580 or folder

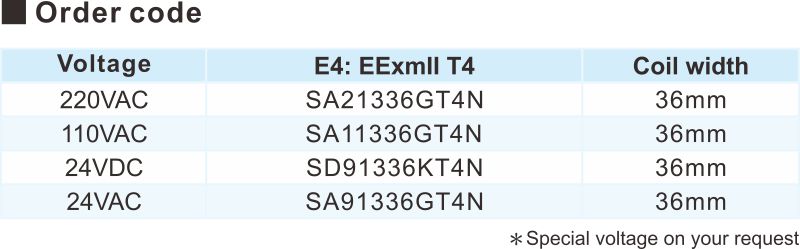

     Explosion-proof certification:SA21336GT4N

     IEC EX
