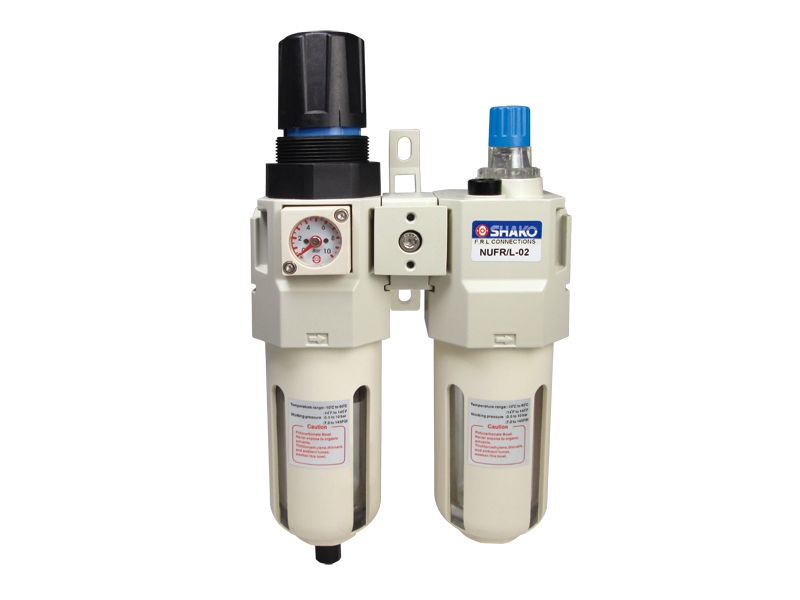

F.R.L. Combination

F.R.L. Combination
    Enlargement
    Product Name : F.R.L. Combination
    Back
    Product Description



    • Remove water and particle effectively.
    • 40μm and 5μm filter element are easily interchangeable and replaceable.
    • Accurate and easy pressure setting.
    • Lubricator oil can be replenished without stopping air supply.
    • Oil spray in mist ensures good lubrication for machines.
    • Anti-acid & alkali bowl and aluminum bowl provide excellent protection in organic chemistry working environments.
    • Lubricator oil (Recommended):ISO-VG32

             (Please contact our sales for more inquiries.)

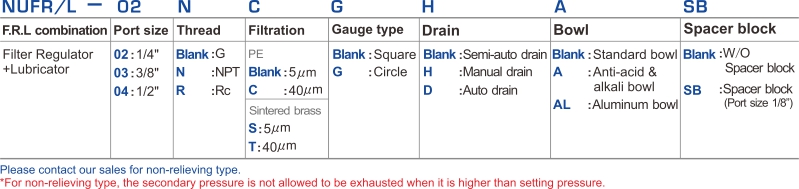

     proimages/2_2020_en/1/1_How_to_order/NUFR／L.jpg

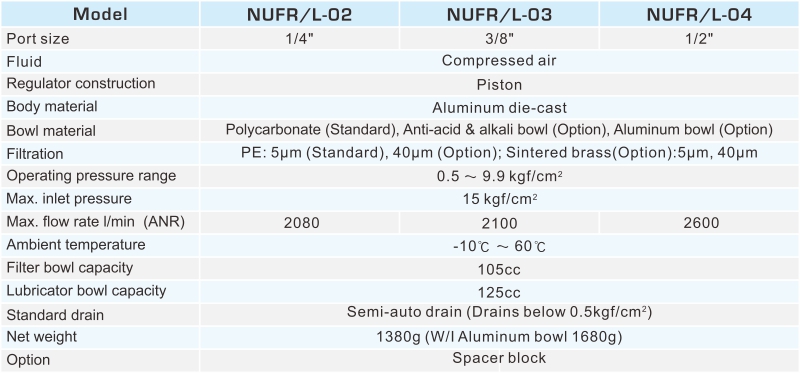

    proimages/2_2020_en/1/2_specifications/NUFR／L.jpg

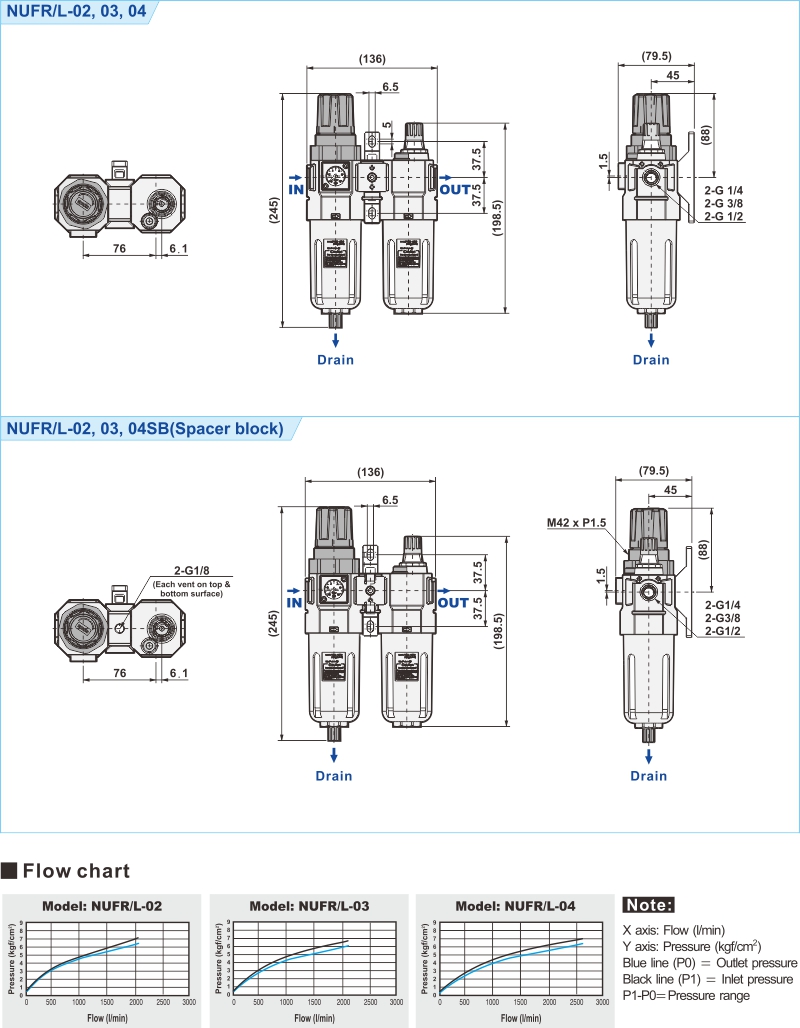

    proimages/2_2020_en/1/3_Dimensions/NUFR／L-1.jpg

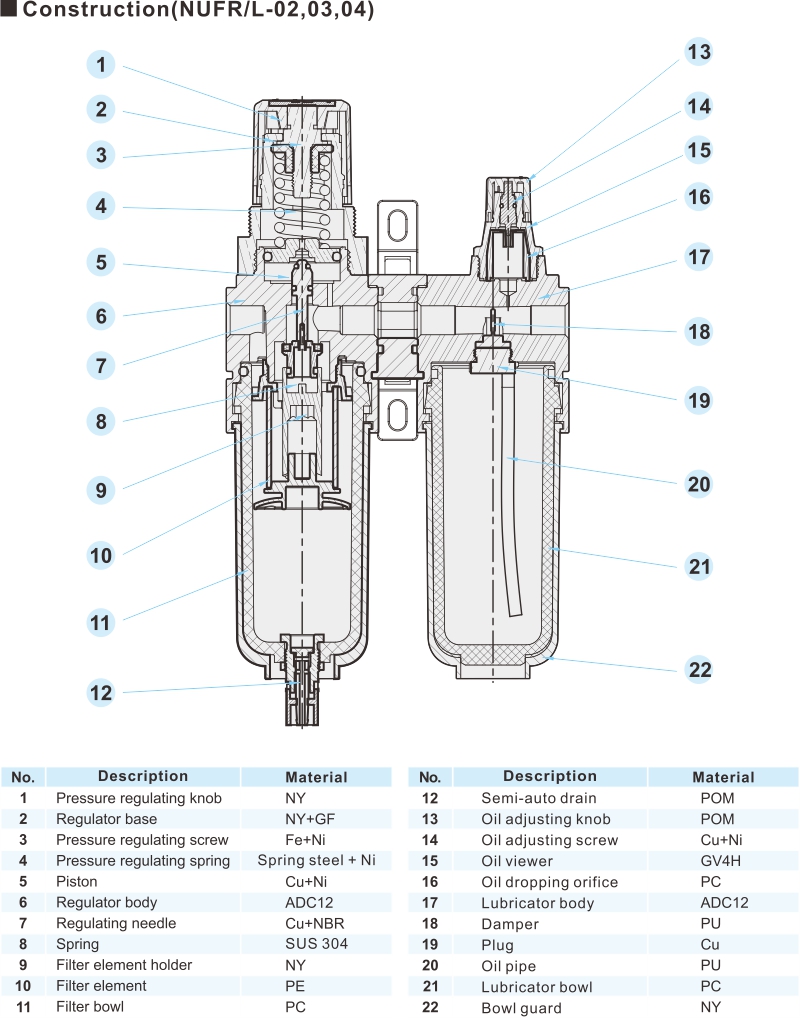

    proimages/2_2020_en/1/3_Dimensions/NUFR／L-2.jpg







       proimages/image/dwg.jpg   proimages/image/3D.jpg



     proimages/2_2020_en/1/6_Symbol/NUFR／L+U.jpg
