Product Name : MINIATURE FILTER REGULATOR

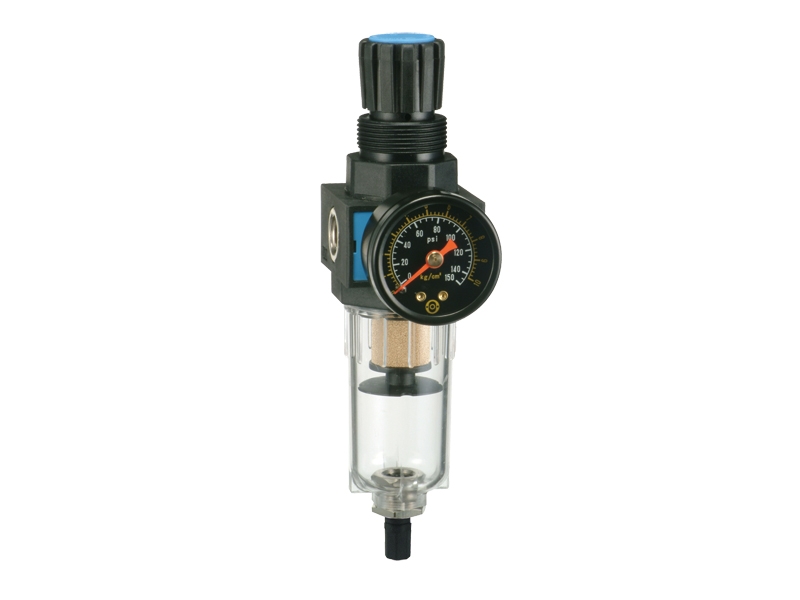

FR500A Miniature Air Filter Regulator
    Enlargement



    • Remove water and particle effectively.
    • Compact size with effective air service.
    • 40µm and 5µm filter element are easily interchangeable and replaceable.
    • Accurate and easy pressure setting.

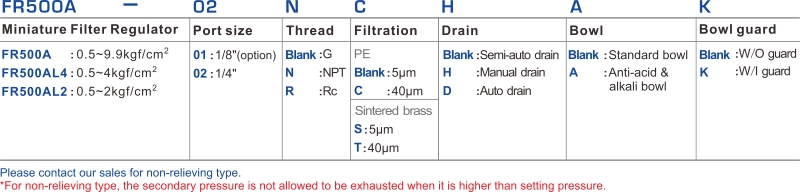

     proimages/2_2020_en/1/1_How_to_order/FR500A.jpg

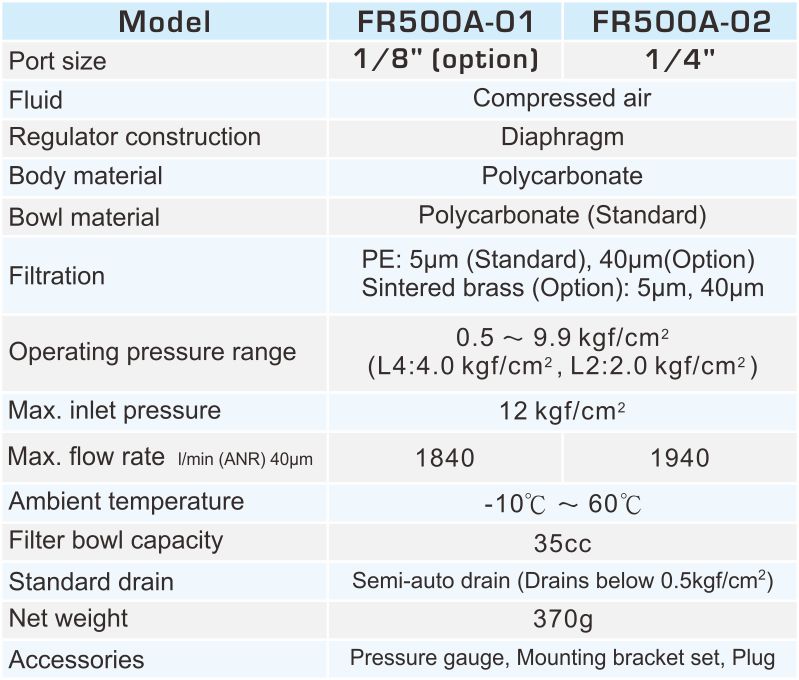

    proimages/2_2020_en/1/2_specifications/FR500A.jpg

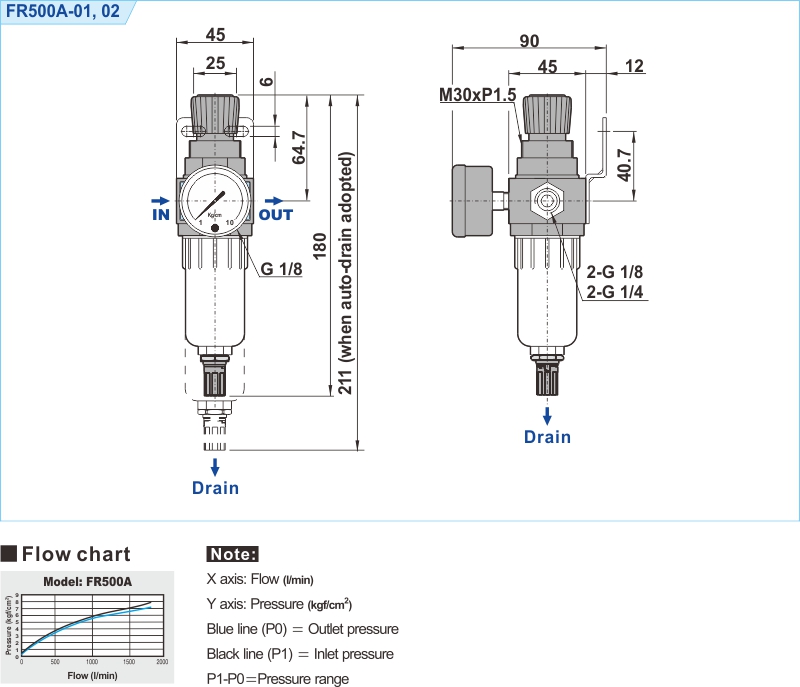

    proimages/2_2020_en/1/3_Dimensions/FR500A.jpg



      proimages/image/PDF(72x72).jpg

     (registered visitor) download CAD model or email CAD model is allowed.

     (non-registered visitor) download CAD model or email CAD model is not allowed.

    Attentions:

    • The access to see 2D/3D CAD model without registration.
    • Please assure the model number and specification for requested product before download CAD model.
    • Please check if the dimensions and tolerance of CAD model is identical with the catalogue in PDF. Please contact your sales for any difference.
    • For any dimension not available to see on CAD model, please contact your sales.
    • After choosing the model number and specification, please click ¨CAD download¨ to tick the format of file you need →Start download →   Start download → download.
    • The direction in video for 2D/3D download.
    • Registration step description.



     proimages/2_2020_en/1/6_Symbol/NUFR+U.jpg
