Eco Power-Saving 2/2 WAY Solenoid Valve
/
11-2-8
Eco Power-Saving Solenoid Valve
High Pressure Series For New Energy

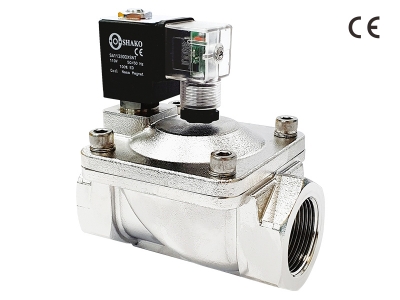

E-SPU225A Eco Power-Saving 2/2 Way Solenoid Valve
Enlargement
Product Name : E-SPU225A Eco Power-Saving 2/2 Way Solenoid Valve
Back
Maximum reduction of power consumption is up to 75%.
Effectively reduce temperature rise of coil and extend service life of solenoid valve.
Pilot acting for low starting pressure.
Large flow rate and high working pressure.
Quick response.
Stainless steel body and stem provide exceptional durability.
Flange type is available for JIS 10K, ANSI 150LB and PN16.
Timer for setting on/off time as optional accessory.
CE conformity.
How to order

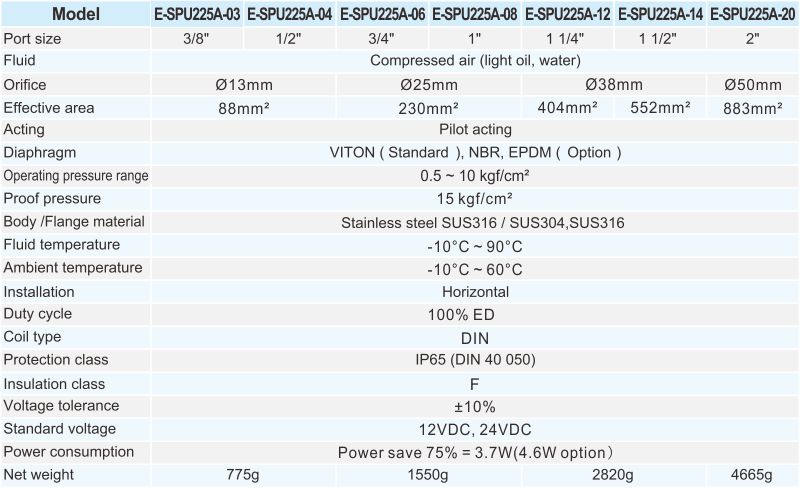

Specifications

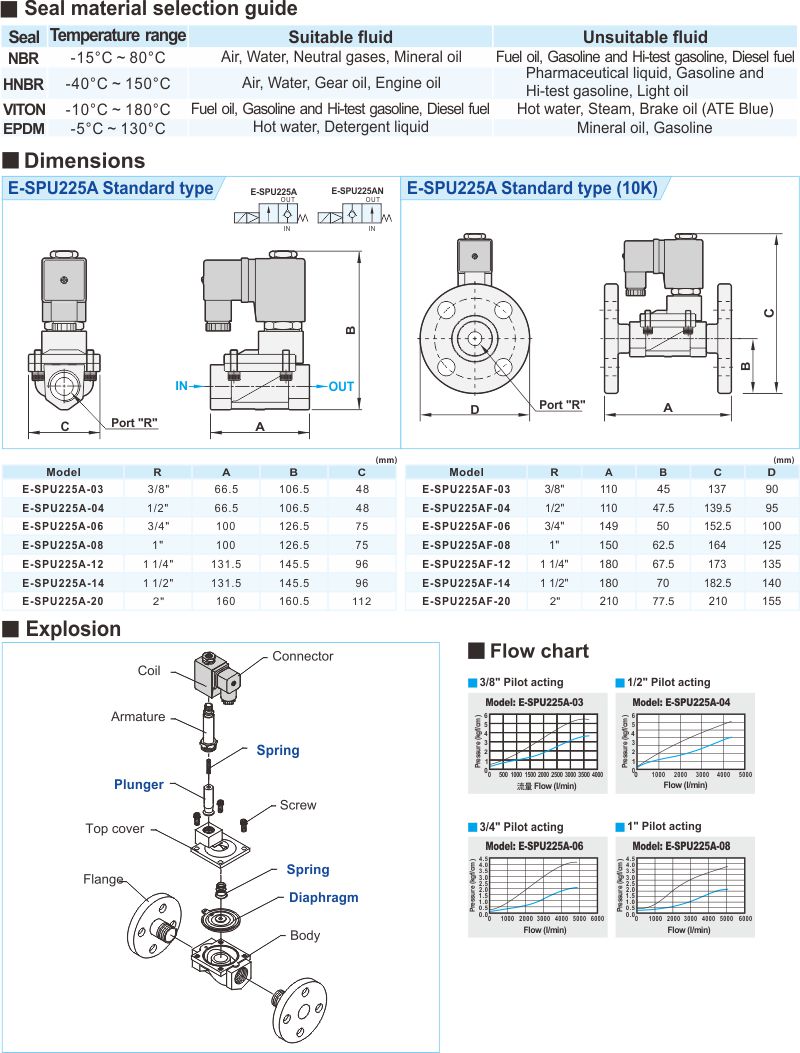

Dimensions
PDF Documents
