UMF COALESCING FILTER

Product Name : UMF COALESCING FILTER

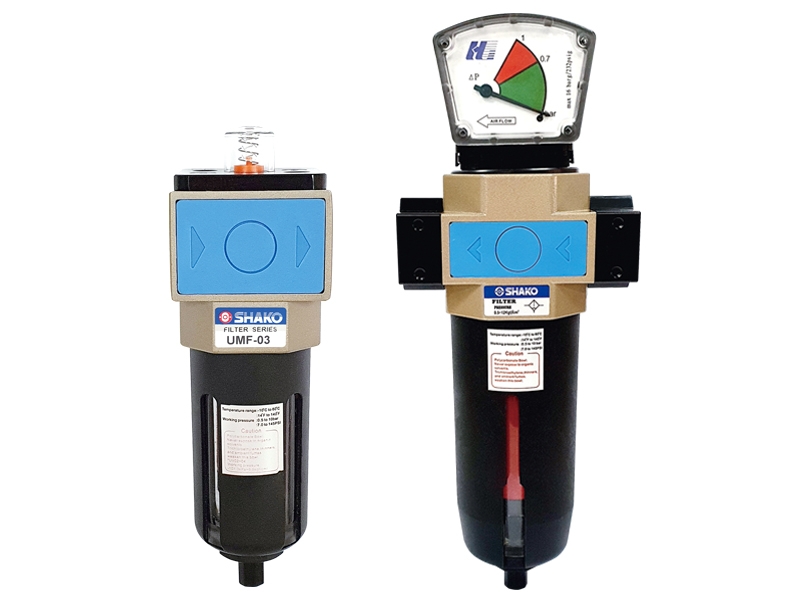

UMF Coalescing Filter from SHAKO
    Enlargement
    Back



    • UMF series effectively removes oil; water; carbon and particle.
    • With 0.01µm glass fiber filter element.
    • High quality control ensures stable running and long life.
    • Convenient to see air quality from pressure indicator; prevent the filter element from clogging.

    Note: Please install air filter UF series upstream to extend life of filter element.

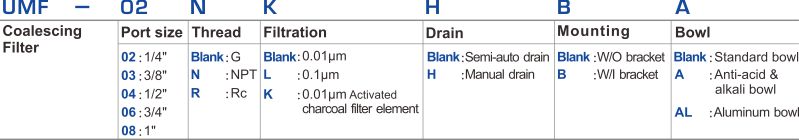

    proimages/2_2020_en/1/1_How_to_order/UMF.jpg

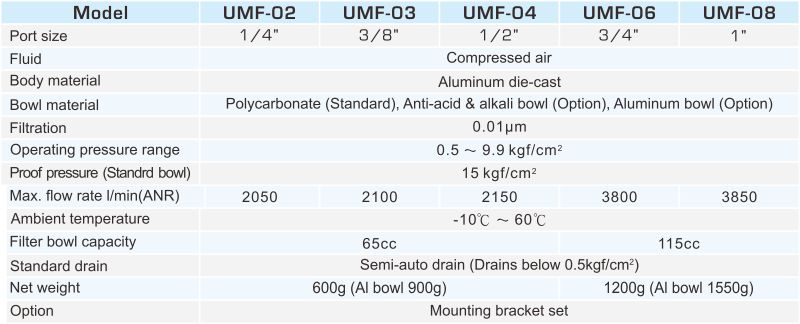

    proimages/2_2020_en/1/2_specifications/UMF.jpg

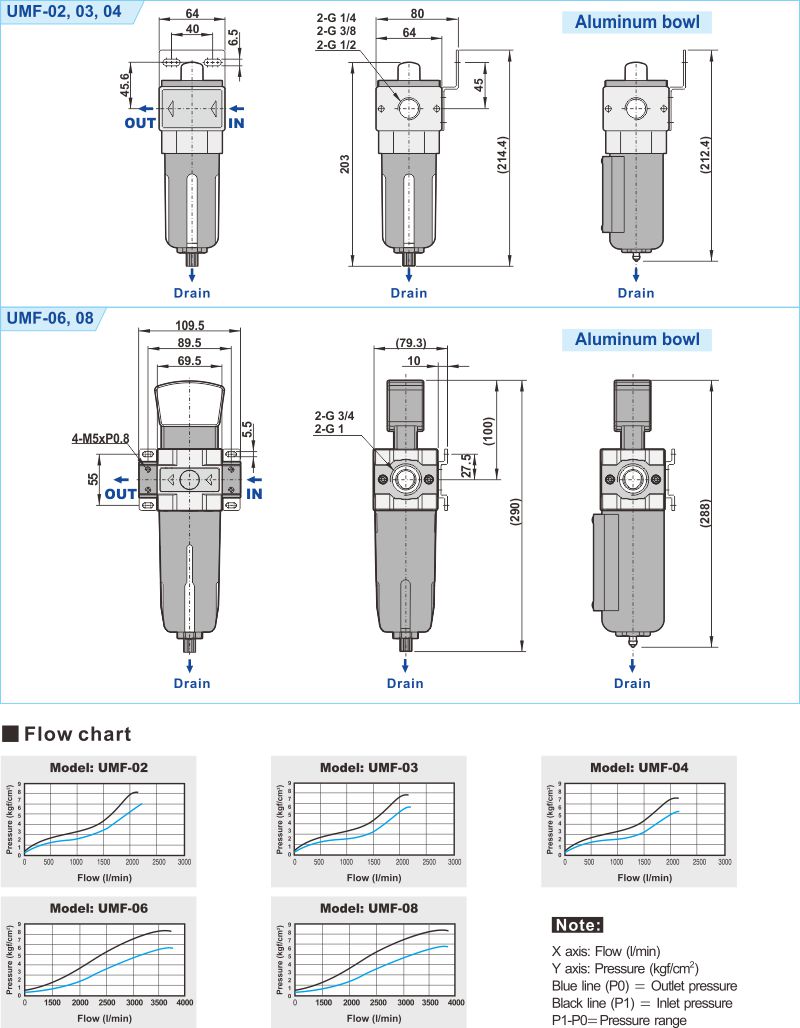

    proimages/2_2020_en/1/3_Dimensions/UMF.jpg



      proimages/image/PDF(72x72).jpg

     (registered visitor) download CAD model or email CAD model is allowed.

     (non-registered visitor) download CAD model or email CAD model is not allowed.

    Attentions：

    • The access to see 2D/3D CAD model without registration.
    • Please assure the model number and specification for requested product before download CAD model.
    • Please check if the dimensions and tolerance of CAD model is identical with the catalogue in PDF. Please contact your sales for any difference.
    • For any dimension not available to see on CAD model, please contact your sales.
    • After choosing the model number and specification, please click ¨CAD download¨ to tick the format of file you need →Start download →   Start download → download.
    • The direction in video for 2D/3D download.
    • Registration step description.



      proimages/2_2020_en/1/6_Symbol/UMF.jpg
