SRH Miniature High Pressure Regulator

SRH Miniature High Pressure Regulator
    Enlargement
    Product Name : SRH Miniature High Pressure Regulator
    Back

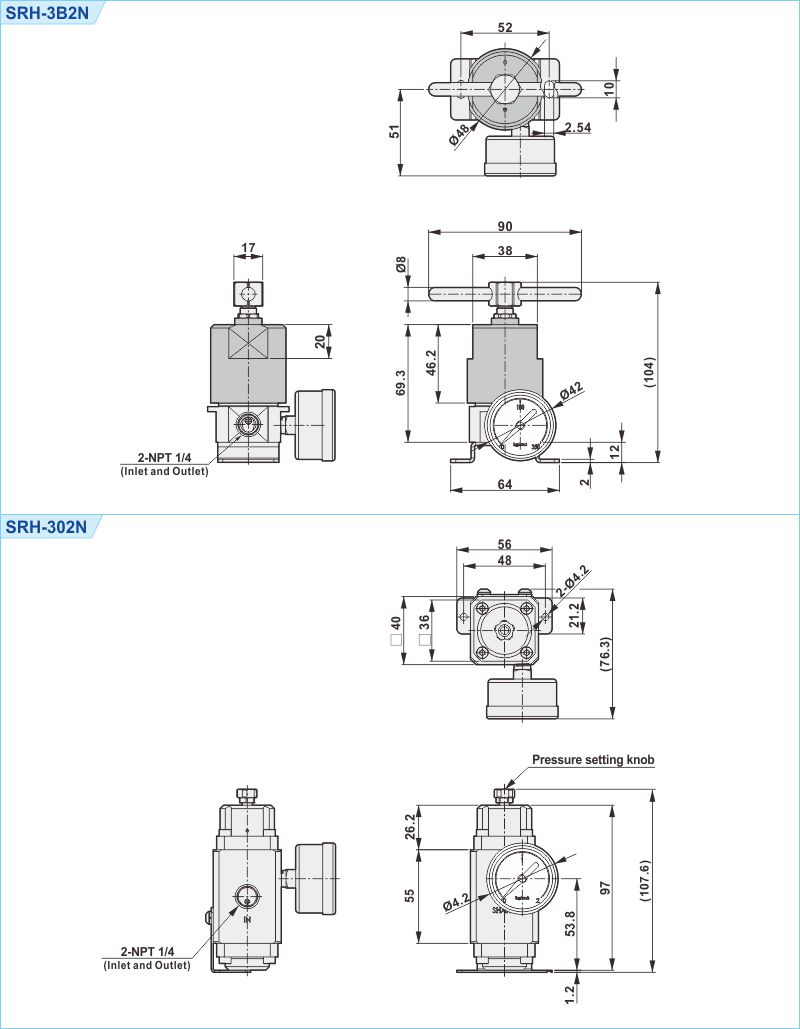

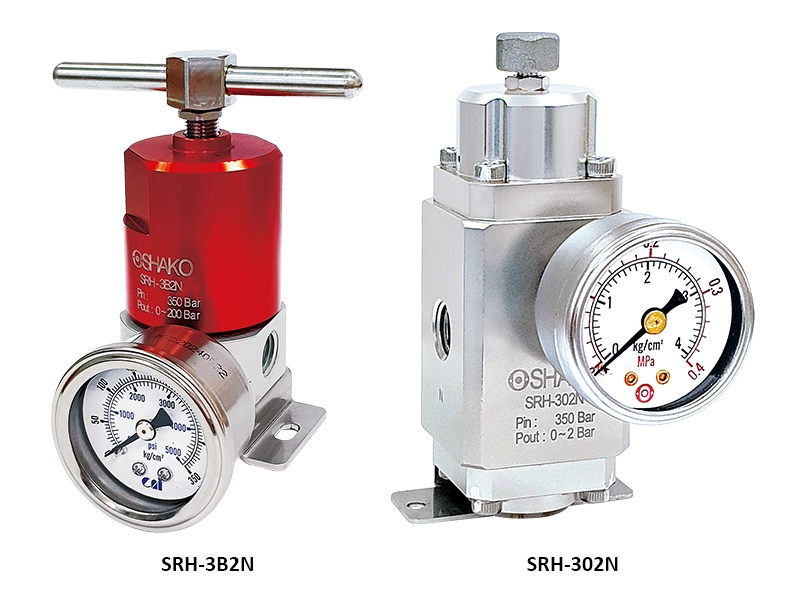

        SRH-3B2N

    • Lightning design for configuration.
    • Setting pressure up to 200bar.
    • Inlet pressure up to 350bar.

        SRH-302N

    • Lightning design for configuration.
    • The structure of pressure regulation by two steps for stable outlet pressure.
    • Balance lifting structure to reduce the impact of inlet pressure decrease.
