    Product Name : ICE ISO15552 STANDARD CYLINDER
    Back



    • High quality of aluminum tube provides a long service life.
    • High quality of seals ensures leakage free.

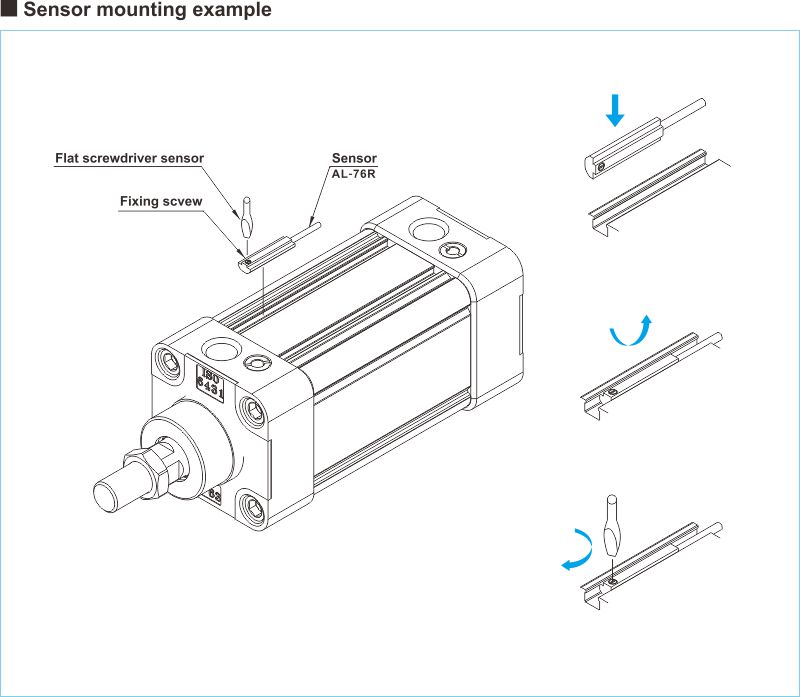

    • Various sensors for option.
    • With adjustable cushions on both ends.

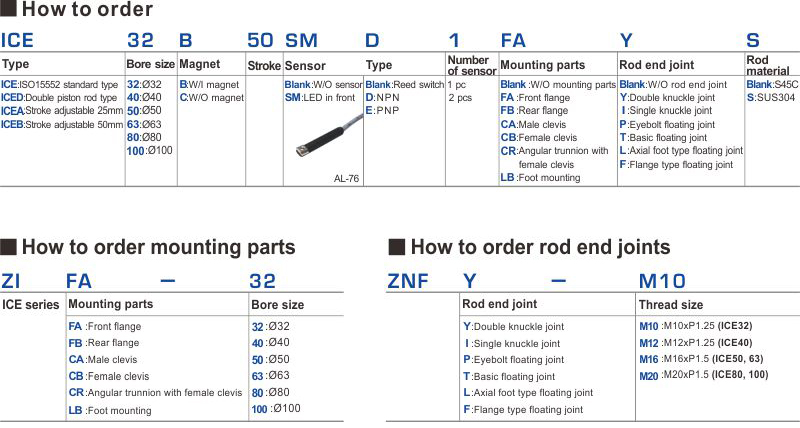

    proimages/2_2020_en/3/1_How_to_order/ICE-1004.jpg

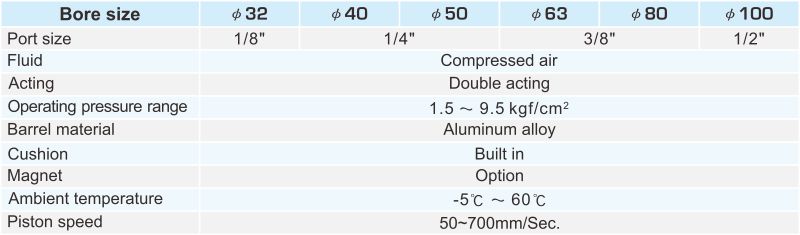

    proimages/2_2020_en/3/2_specifications/ICE.jpg

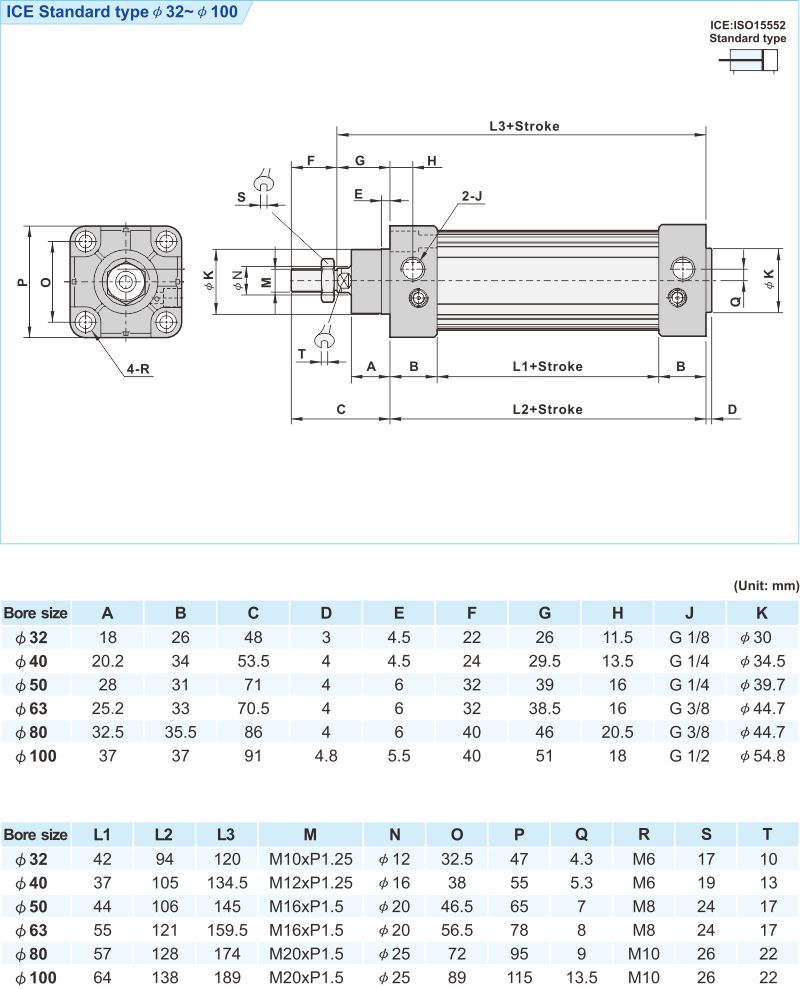

    proimages/2_2020_en/3/3_Dimensions/ICE-1.jpg

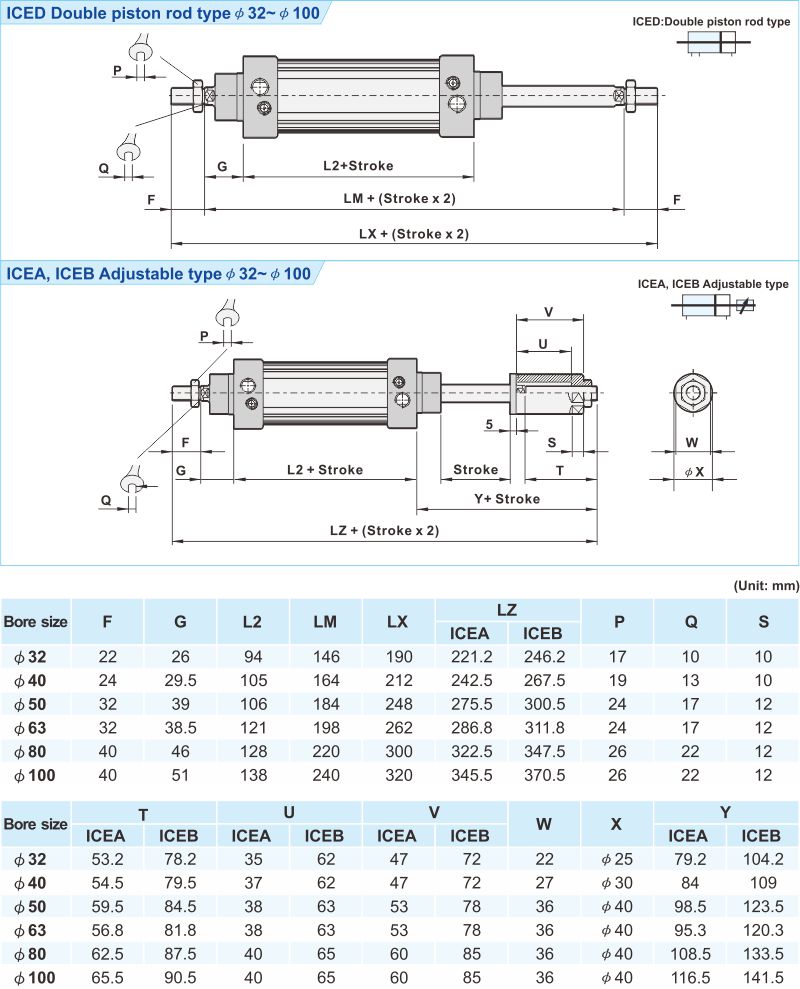

    proimages/2_2020_en/3/3_Dimensions/ICE-2.jpg

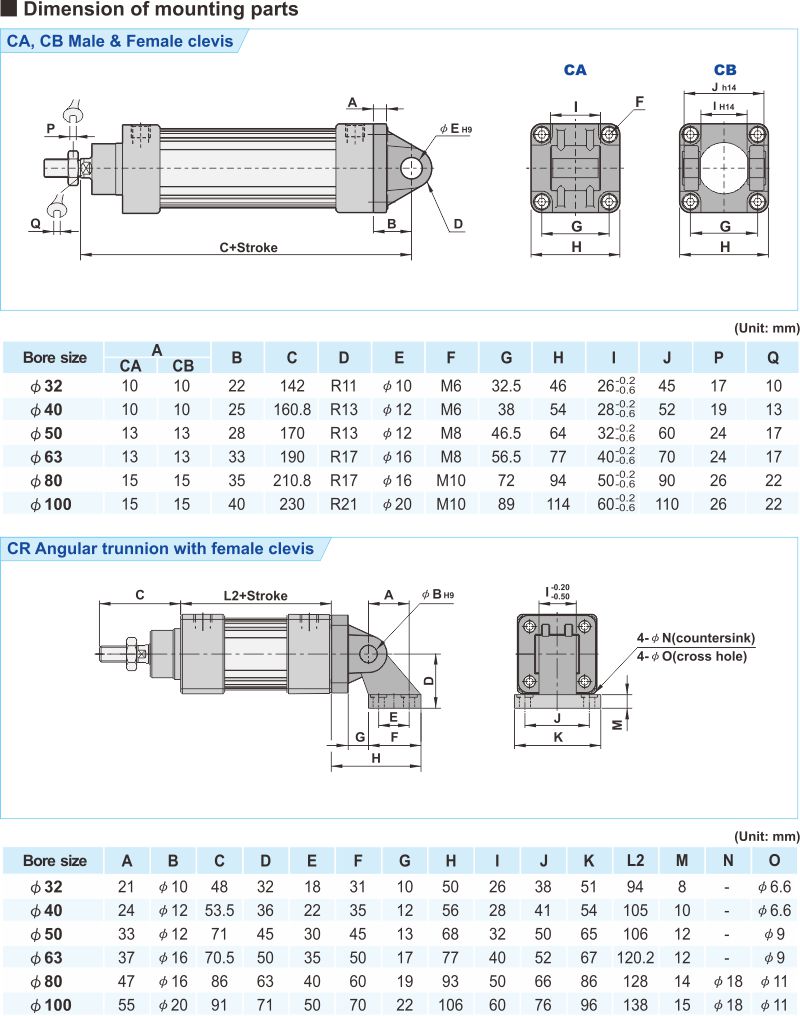

    proimages/2_2020_en/3/3_Dimensions/ICE-3.jpg

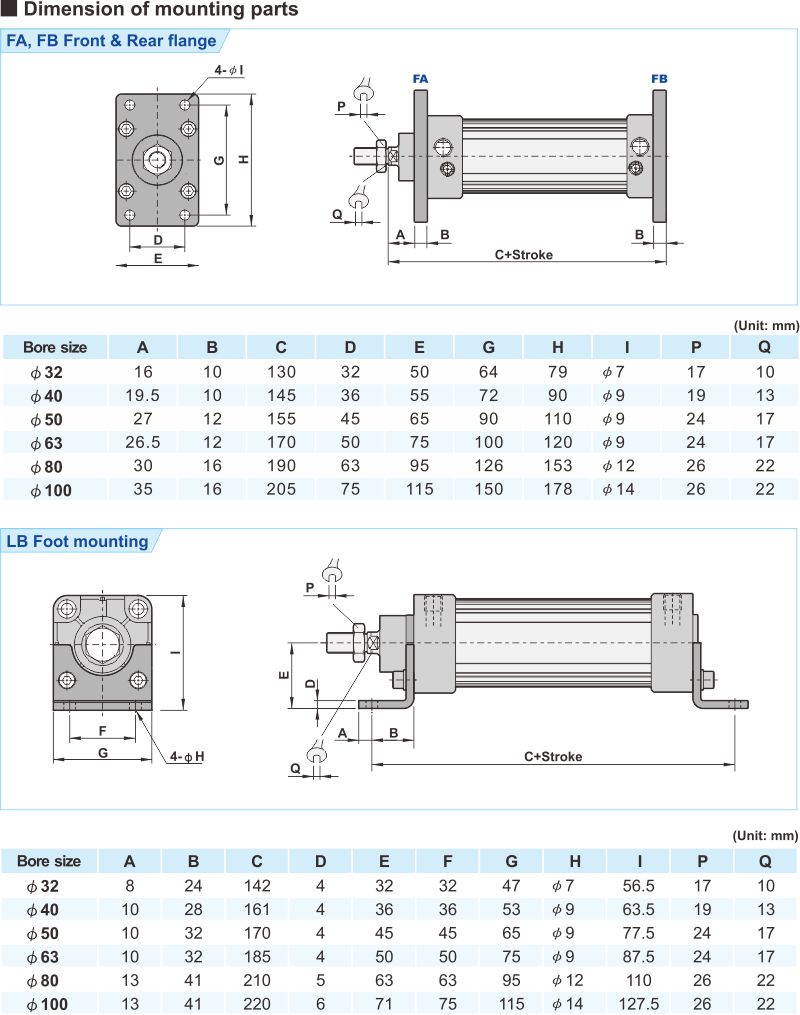

    proimages/2_2020_en/3/3_Dimensions/ICE-4.jpg

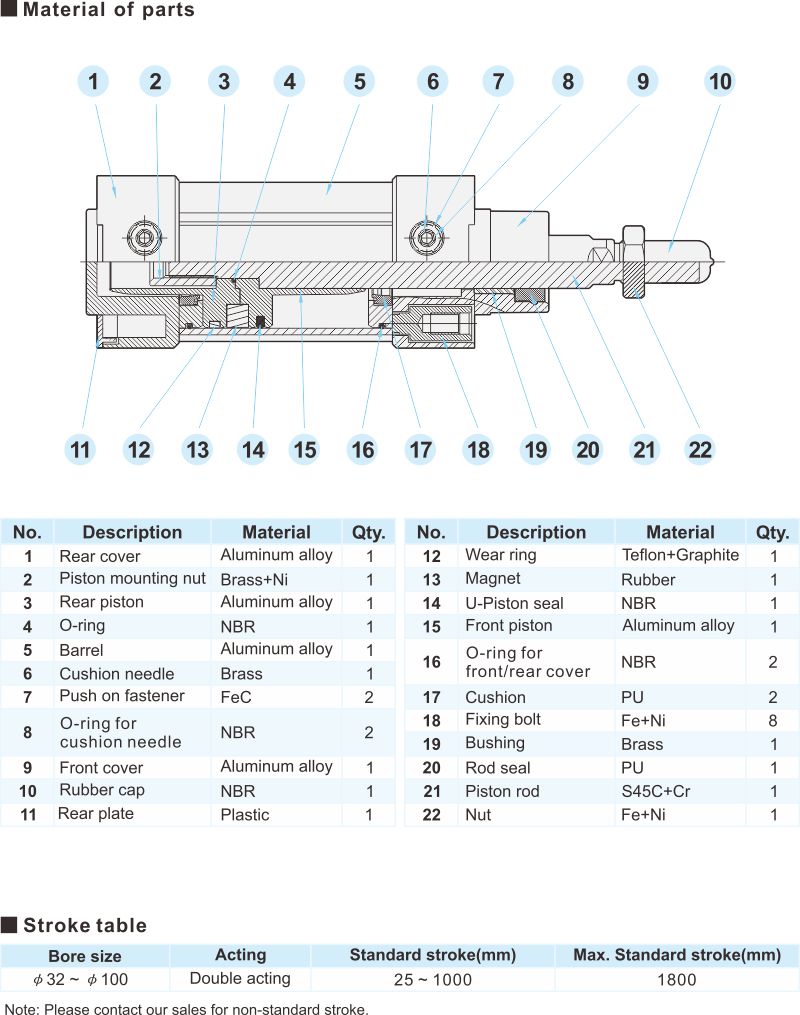

    proimages/2_2020_en/3/3_Dimensions/ICE-5.jpg



    proimages/2_2020_en/3/3_Dimensions/ICE-6.jpg
