JQM Guide Jig Cylinder
Product Name : JQM Guide Jig Cylinder
Enlargement
Back
Hard anodized aluminum barrel provides corrosion and wear resistance as well as long life.
Compact size and space saving.
Strict quality control ensures the product in stability and excellent performance.
Simple maintenance and installation.
Different bore sizes and strokes for selection.
Various sensor switches are available.
Possess excellent bending and twisting resistance for heavier side load.

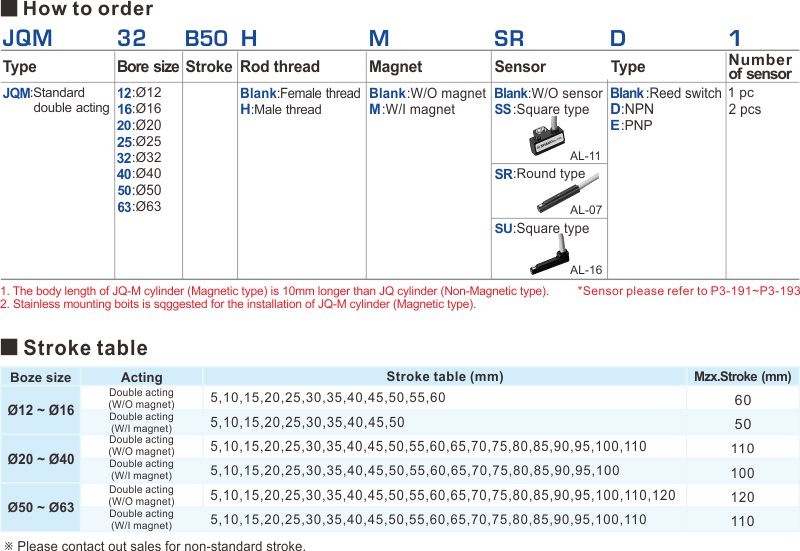

How to order

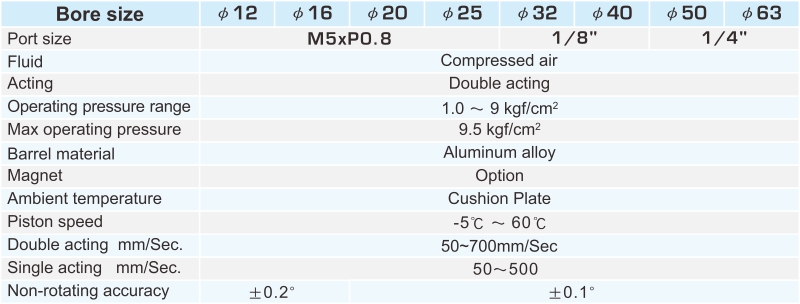

Specifications

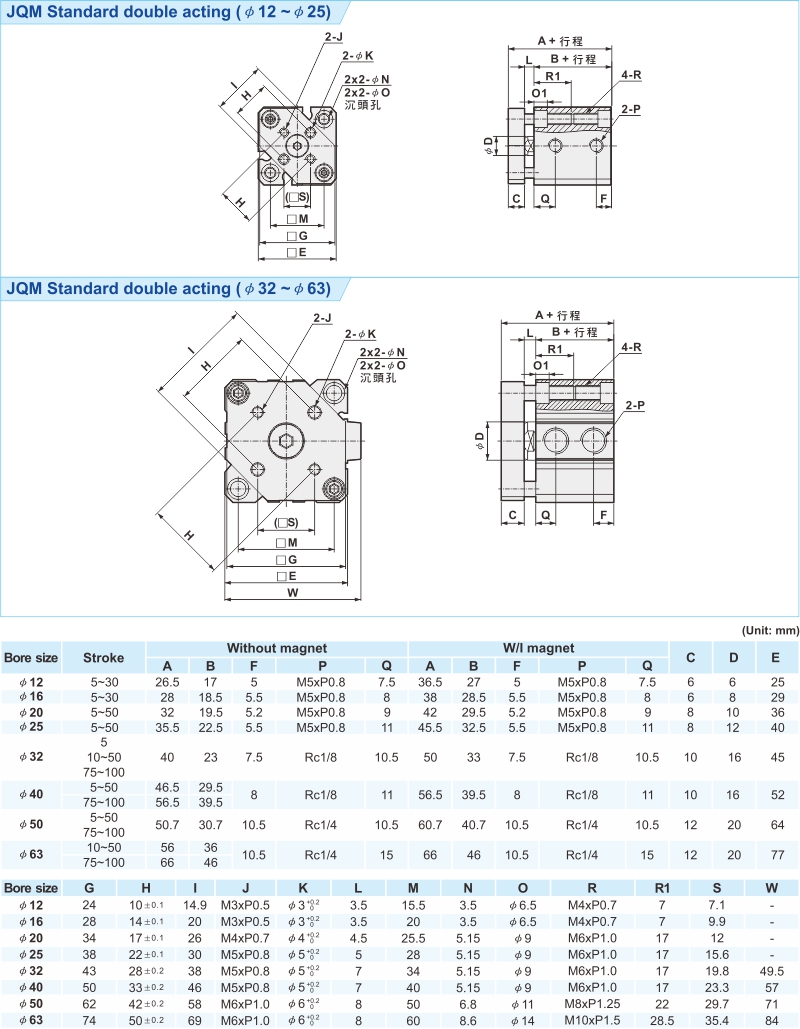

Dimensions
PDF Documents
