PNEUMATIC PRESS

Product Name : PNEUMATIC PRESS
PNEUMATIC PRESS
    Enlargement
    Back



    • The cylinder is identical to ISO6431 standard.
    • Magnet is optional accessory; and sensor switch is available to be installed.
    • Model no. P100 is light and compact; suitable for small size press.
    • The cushions are installed on both ends for stable operation.
    • We accept the order without cushions; please make a note of it on purchase order.
    • Strong body and simple maintenance.
    • It is available to install quick exhaust valve for speed up operation.
    • Guide rod is installed for prevention of piston rod rotate.
    • Hand control or foot control at your selection.

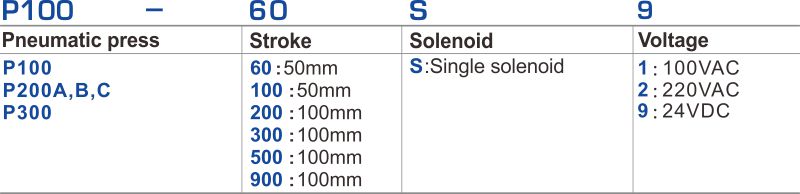

    proimages/2_2020_en/3/1_How_to_order/P100.jpg

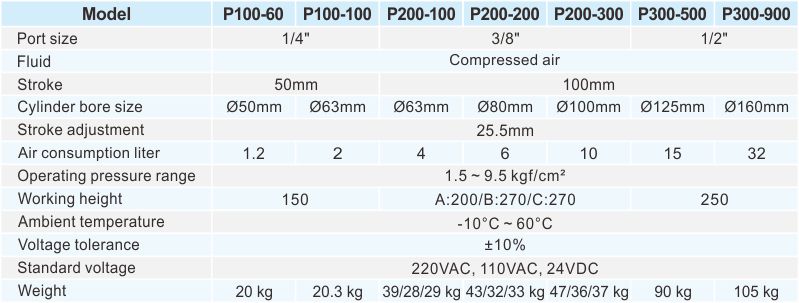

    proimages/2_2020_en/3/2_specifications/P100.jpg

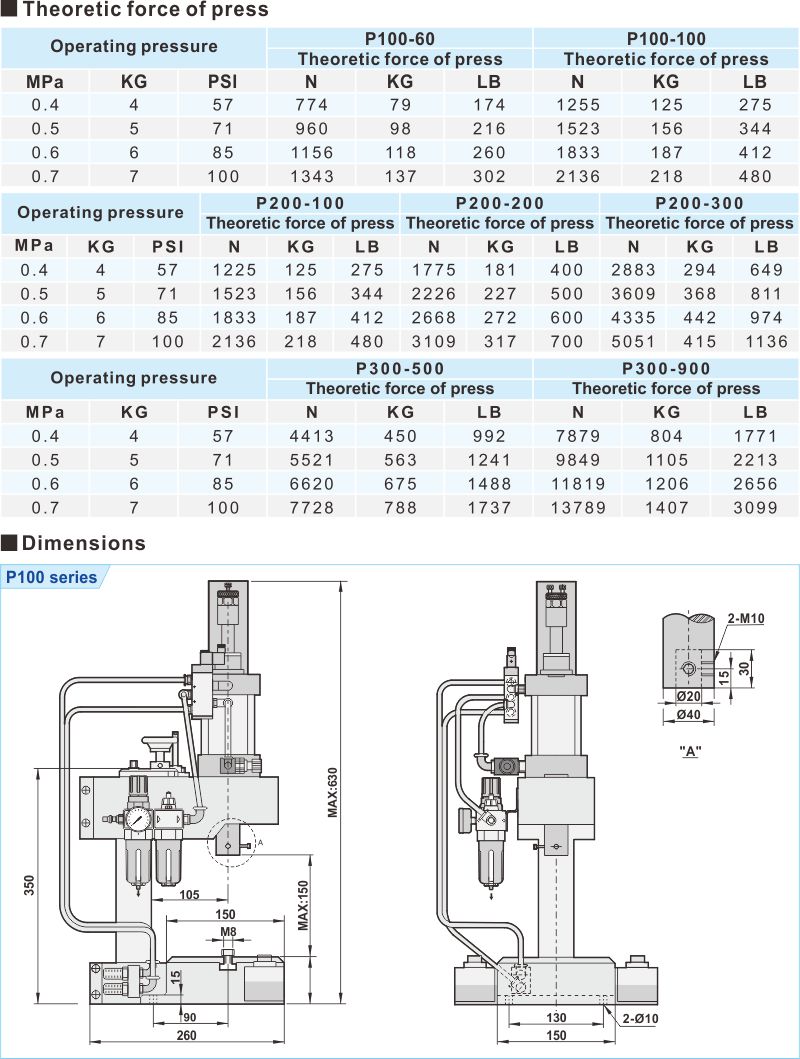

    proimages/2_2020_en/3/3_Dimensions/P100-1.jpg

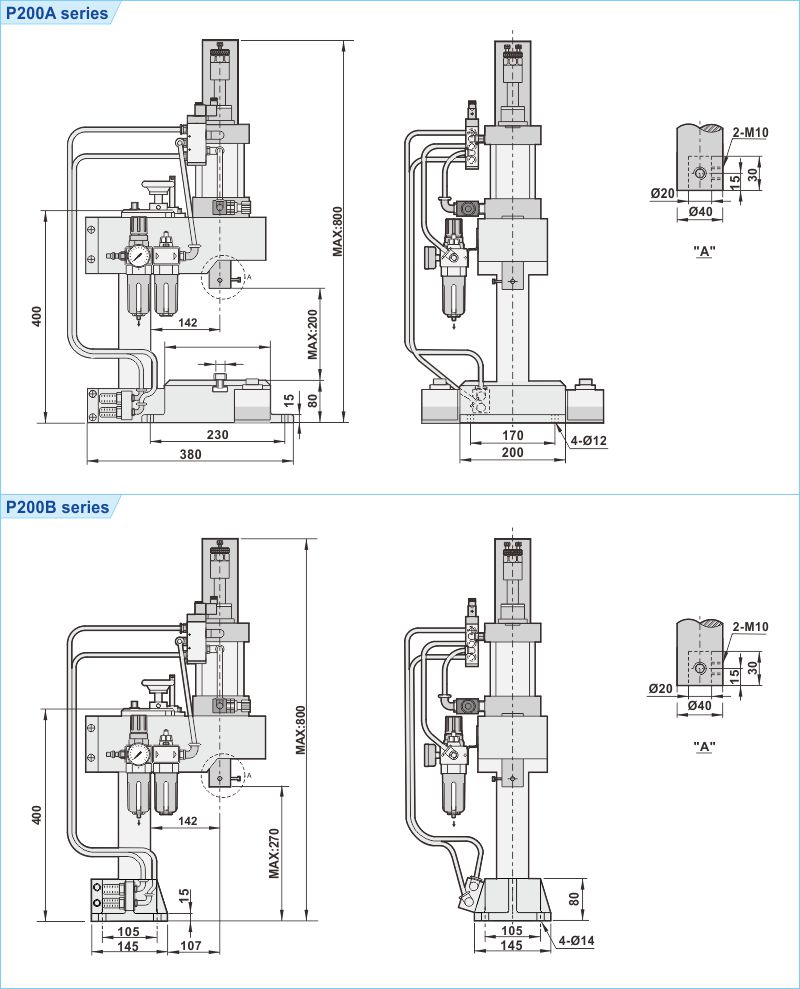

    proimages/2_2020_en/3/3_Dimensions/P100-2.jpg

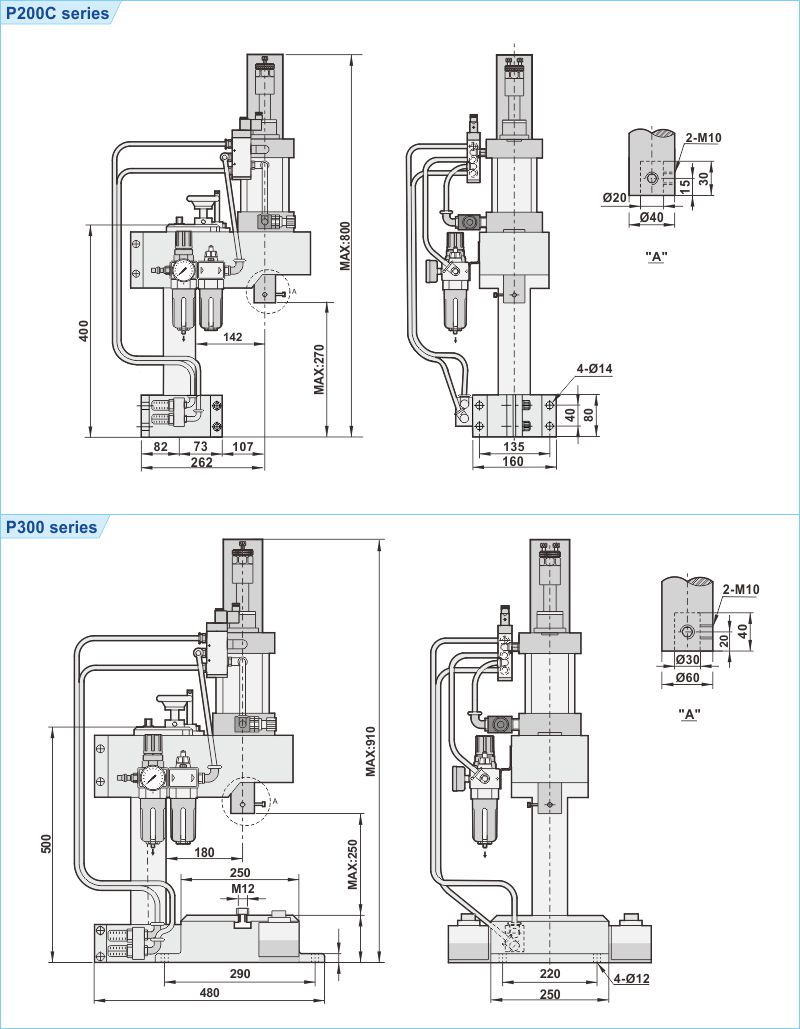

    proimages/2_2020_en/3/3_Dimensions/P100-3.jpg



    proimages/2_2020_en/3/3_Dimensions/P100-4.jpg







      proimages/image/PDF(72x72).jpg
