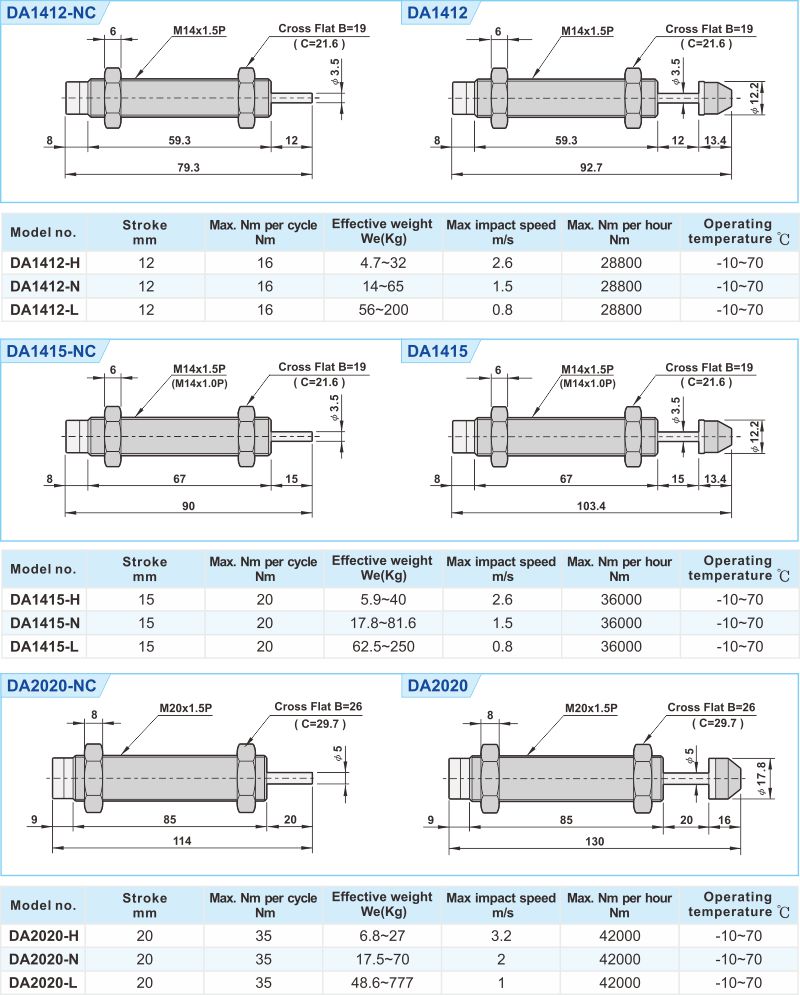

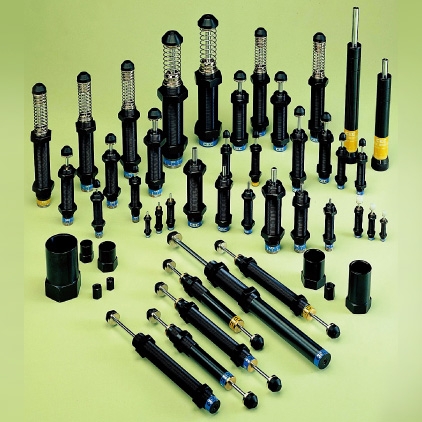

DA SHOCK ABSORBER

Feature:

• Hydraulic self compensation.
• Adjustable cushion.
• Double cushion type.
• Simple installation.



Installation Cautions:

• Stop at 1mm before effective stoke.
• Avoid any painting or damage on rod.
• Strike angle on the collision head should be at right 90°, or less than 2° difference.
• Please pay attention for the hardness of mounting plate to stand the strike.
