MINIATURE CYLINDER

Product Name : MINIATURE CYLINDER
PMA Series Miniature Pneumatic Cylinder
    Enlargement
    Back



    • Built in magnet for sensor use.
    • Caps are rolled and polished; which provides stable quality.
    • Stainless steel SUS304 barrel provides stable movement and features high quality and durable life.
    • Stainless steel SUS304 barrel features corrosion resistance and strongly mechanical strength.

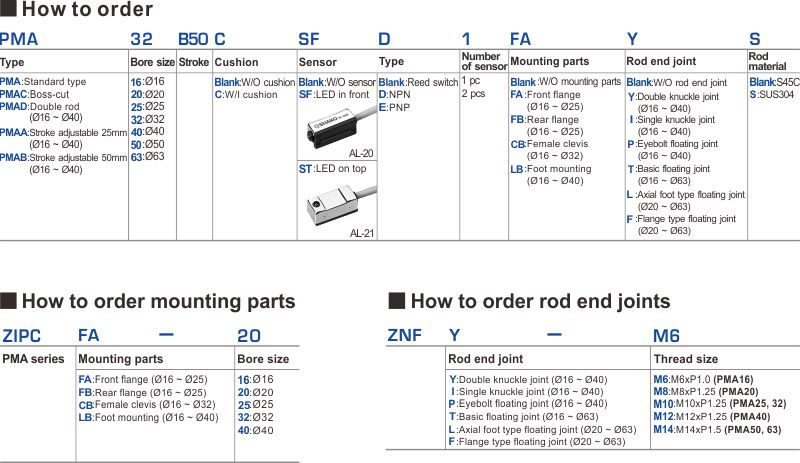

    proimages/2_2020_en/3/1_How_to_order/PMA.jpg
